SLD HINGED LIGHTING COLUMNS

  • Lighting column & fitting raised safely from ground level
  • Raised/lowered easily by one or two persons
  • Optional two piece construction for ease of transport
  • Available from 3.5 – 5.8 metres
  • Easy access for cleaning or maintenance
  • Hot-dip galvanised after manufacture
  • Optional powdercoated finish
  • Stainless steel version available
  • Custom light brackets available
  • Baseplate covers available
  • Engineer certified hinged column maximum load capacity to 20Kg

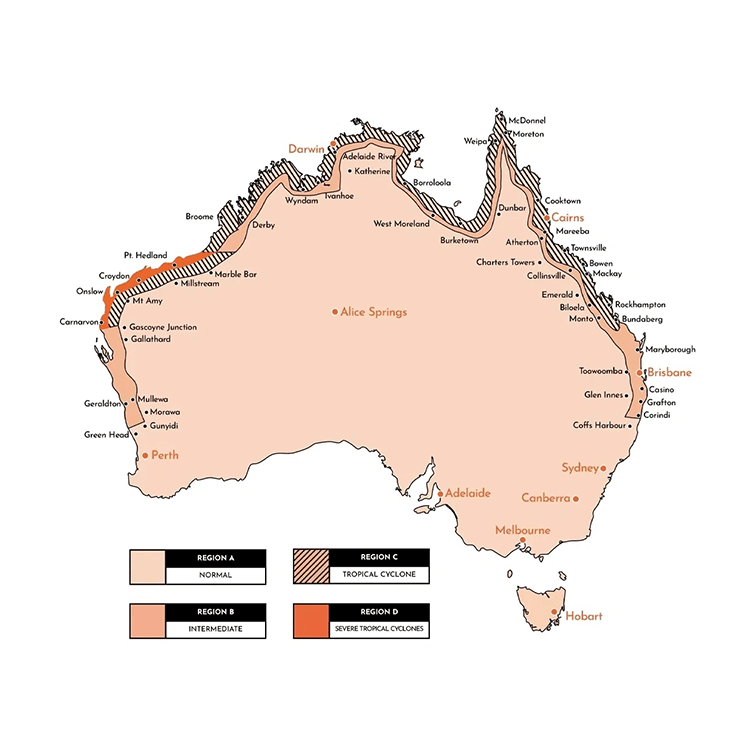

  • Engineer certified AS/NZS 1170.2:2011 for Wind Regions A, B, C
  • Engineer certified foundation/rag bolt assembly and footing design

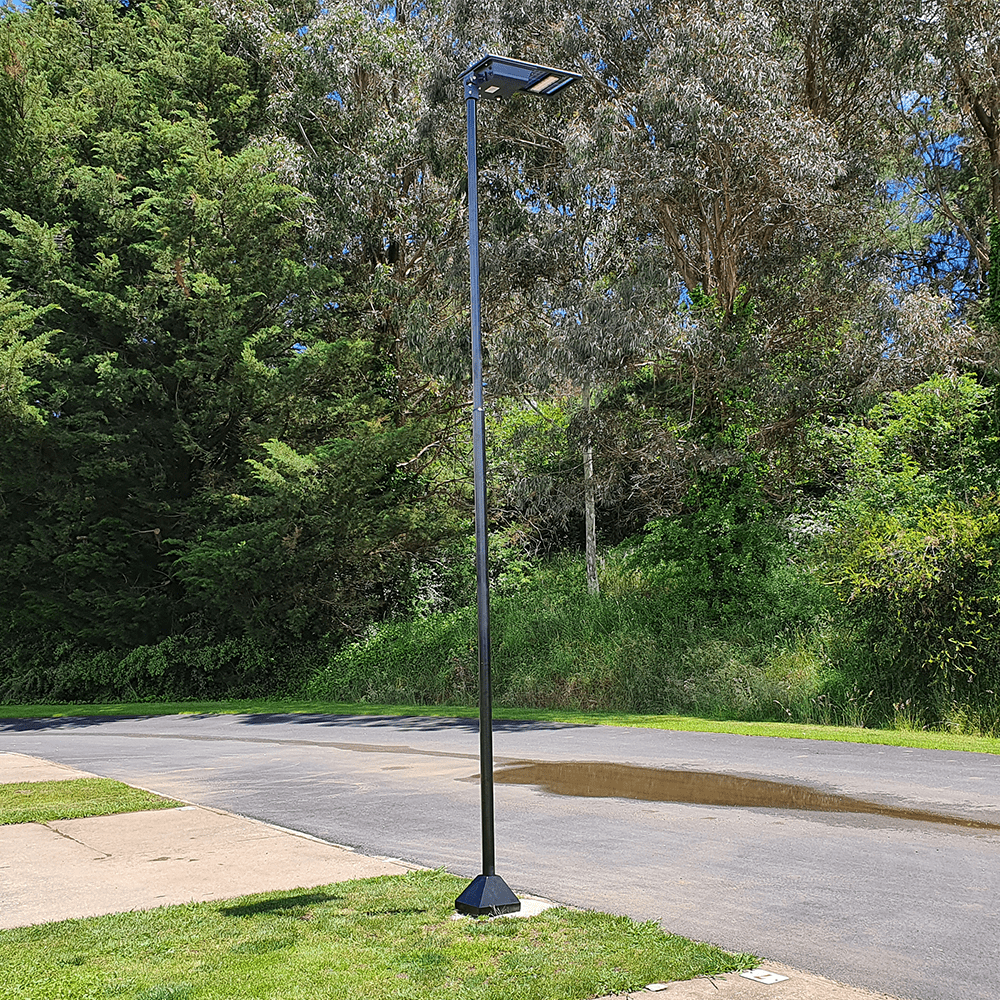

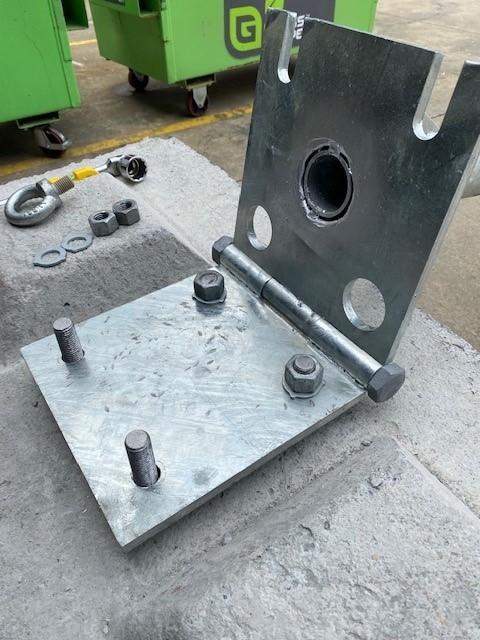

The SLD hinged column is designed to raise a lighting column and solar fitting easily, safely, and effectively without elevated work platforms or lifting equipment. The hinged baseplate PCD suits our engineered SLD M20 foundation cage. Once the bottom hinge plate is secured to the foundation cage, the solar light is fitted at ground level and the column is simply walked upright to be secured in place. The hinge plate and fixings points are protected by the included cover. Stainless steel, Hot dipped galvanised and/or powdercoated finishes are available.The SLD hinged column is offered as a single fully welded and assembled unit or alternatively in a two piece, assemble on site design. The 1200mm hinged base sections are transported on a standard pallet with the galvanised 60mm section transported separately or purchased locally reducing freight costs dramatically. The 60mm tube is simply sleeved into the base section and secured with the weatherproof sleeve cover and tamper proof fixing kit supplied.

Description

Technical Data

SKU

SLDHC

Height

3500mm – 5800mm

Diameter

76mm diameter base post (1200mm high) – 60mm diameter remaining length

Finish

Hot dip galvanised

Powder Coating

Optional

Wind Rating Certification

Engineer certified AS/NZS 1170.2:2011 for Wind Regions A, B, C

Load Rating

Engineer certified hinged column maximum load capacity to 20Kg

Hinge Column

Engineer certified hinged lighting column design

Foundation/Rag Bolt Cage

Engineer certified foundation/rag bolt assembly and footing design
