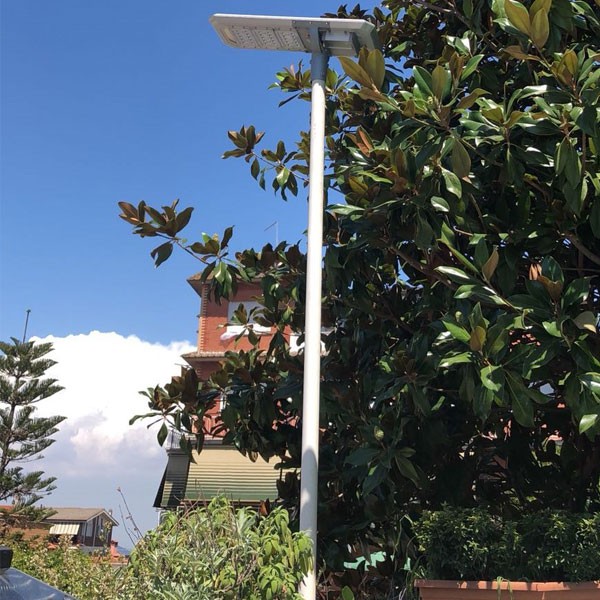

ATLAS 60W SOLAR LIGHT

  • Programmable modes of operation
  • Automatic dusk to dawn lighting
  • Ideal for illuminating paths, driveways and medium sized areas
  • > 7 nights autonomy

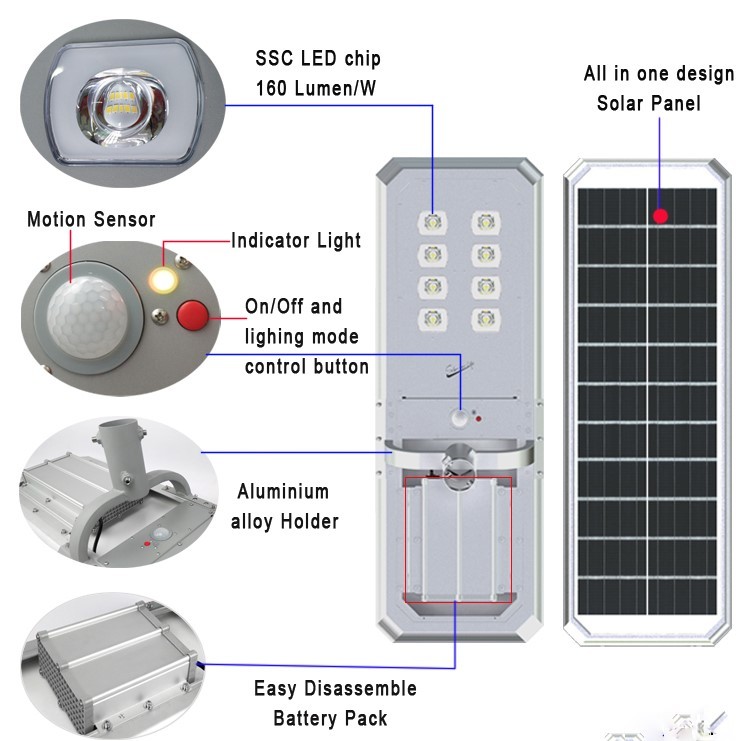

  • Integrated all-in-one design
  • Mounting height of 4 – 5 metres
  • Fully sealed cast aluminium body in a satin natural finish
  • Commercial-grade solar lighting. Custom brackets or poles manufactured on request
  • Stainless steel anti-vandal protection screens available
  • 3 year warranty for faulty workmanship or component failure not influenced by external means.

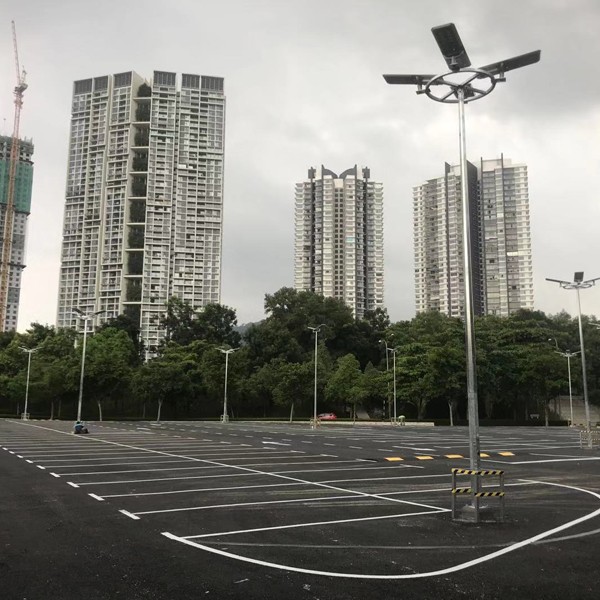

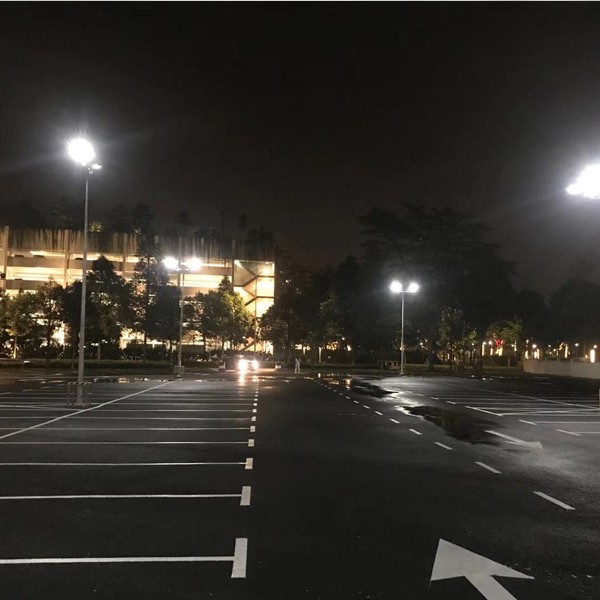

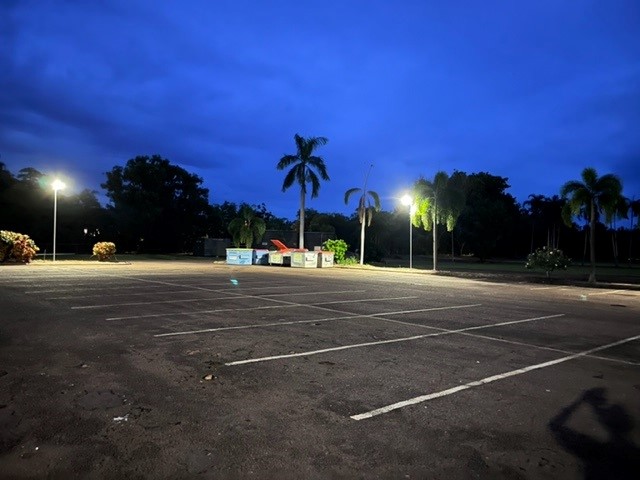

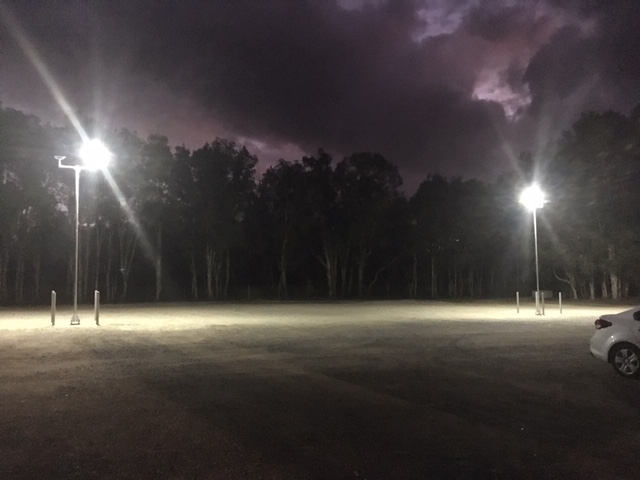

The Atlas range of solar lighting is available in multiple light intensity outputs to cater for applications from dog parks, path and cycleways to large area car park lighting. All models feature versatile and easily selectable built-in programs that change the mode of operation allowing one light to adapt to multiple applications. The integrated design incorporates a high-efficiency solar panel, Lithium-ion battery and LED array in one, easy to install package without the need for trenching, cabling or an electrician.

Description

Technical Data

SKU

SOLL60

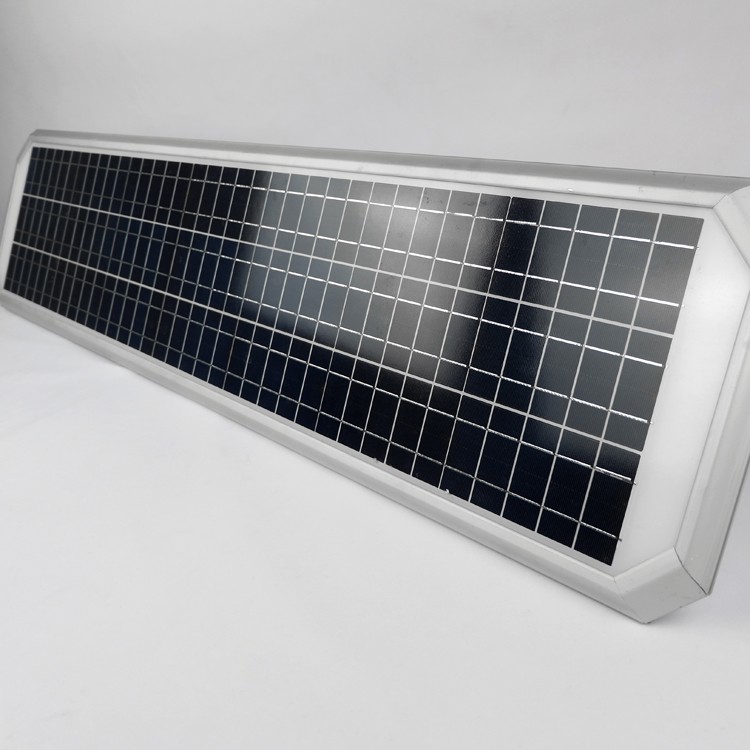

Solar Panel Wattage

30.6W

LED Output

48.15W

Lumen Output

6300 lm

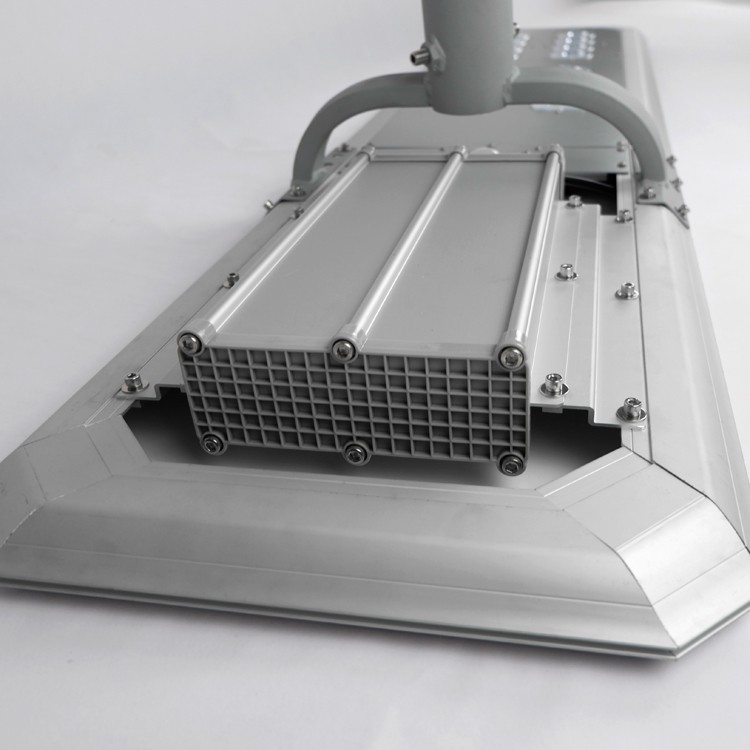

Battery Specifications

(407Wh) 27.5AH 14.8V

Battery Type

Lithium-ion

Correlated Colour Temp (CCT)

6000K

Fixture Size

1095(I) x 381 (w) x 84 (h) mm

Light Source

80x OSRAM 3030

Recharge

4 – 6 hours

Mounting Height

5 – 6 metres

Mounting

76mm Column – 60mm Spigot

Finish

Satin natural aluminium finish

Warranty Period

3 years

Reviews

There are no reviews yet.

Be the first to review “ATLAS 60W SOLAR LIGHT”

60W Atlas Data Sheet

Download

60W Atlas Dimensions

Download

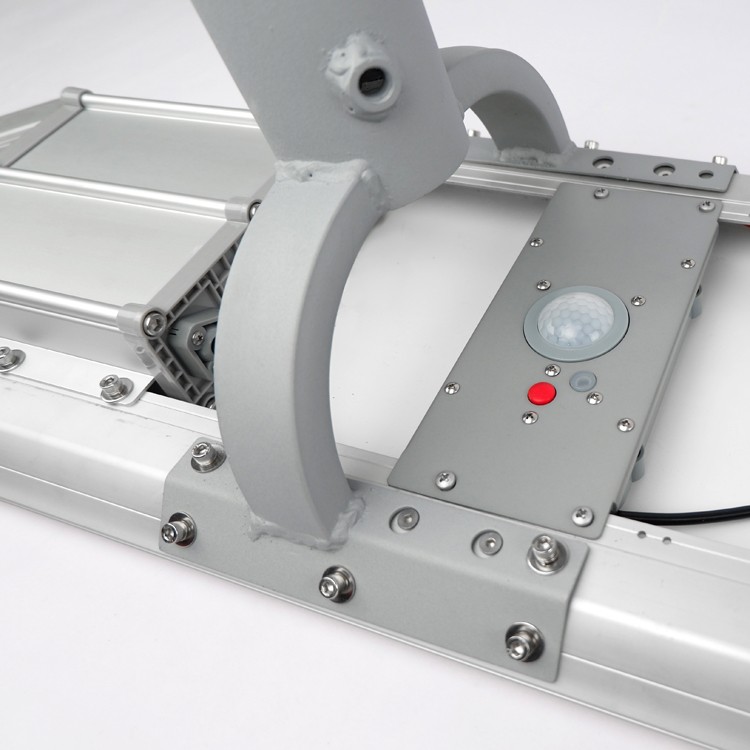

OPERATIONAL MODES Accessed by using the red ON/OFF button. Hold the red button to turn the light on or off. Short press of red button when the light is on will scroll through the operational modes.

  • Mode 1: Red indicator light. 30% output until the PIR is activated, operating at 100% until no movement is detected, returning to 30%
  • Mode 2: Green indicator light. 5 hours 100% output then 25% output until the PIR is activated, operating at 100%. 2 hours before dawn, mode changes to a constant 70% output until dawn
  • Mode 3: Orange indicator light. constant 70% output dusk until dawn
LIGHTING DISTRIBUTION DIMENSIONS WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES • A typical 4 x D cell battery maglite will emit approx. 70 lumens • The average path light using 2-3 LEDs emits 15-18 lumens • A 25W incandescent globe emits approximately 160 lumens
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
