HALO SOLAR BOLLARD INSTALL KITS

  • High security baseplated, footing required
  • High security baseplated to existing slab
  • High security inground
  • Medium security baseplated, footing required
  • Medium security baseplated to existing slab
  • Medium security inground
  • Detailed downloadable PDF instructions

Description

Technical Data

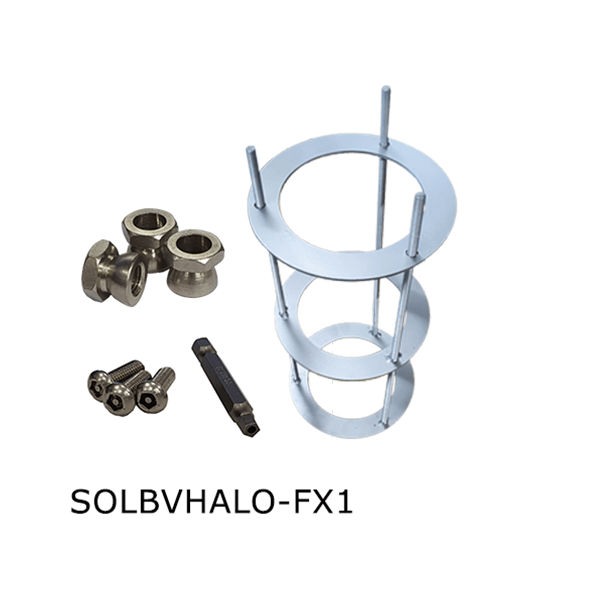

SOLBV-FX1

High security baseplated, footing required – 1 x Custom “Rag Bolt” cage, 4 x M10 stainless steel tamperproof “Shearnuts”, 4 x M6*20mm stainless steel tamper proof solar head fixings inc. tool

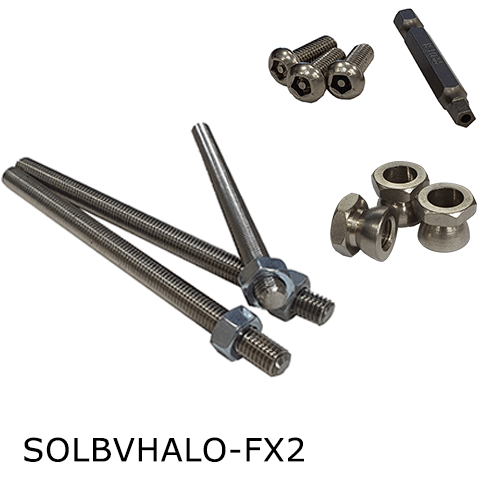

SOLBV-FX2

High security baseplated to existing slab – 4 x M10*100mm stainless steel allthread, 4 x M10 stainless steel tamperproof “Shearnuts”, 4 x M6*20mm stainless steel tamper proof solar head fixings inc. tool. Please note: Chemset epoxy required (SOLBV-FX6 below) 1 x 300ml tube will install up to five bollards

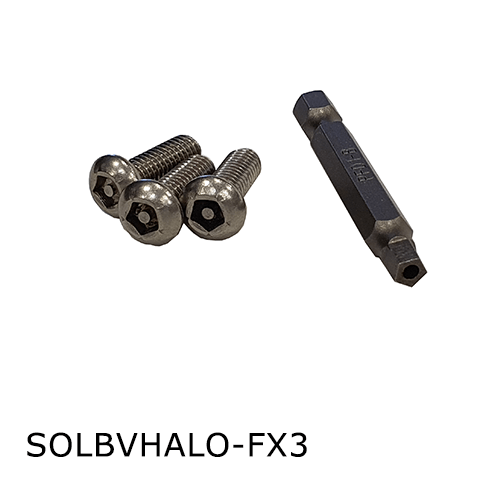

SOLBV-FX3

High security inground – 4 x M6*20mm stainless steel tamper proof solar head fixings inc. tool

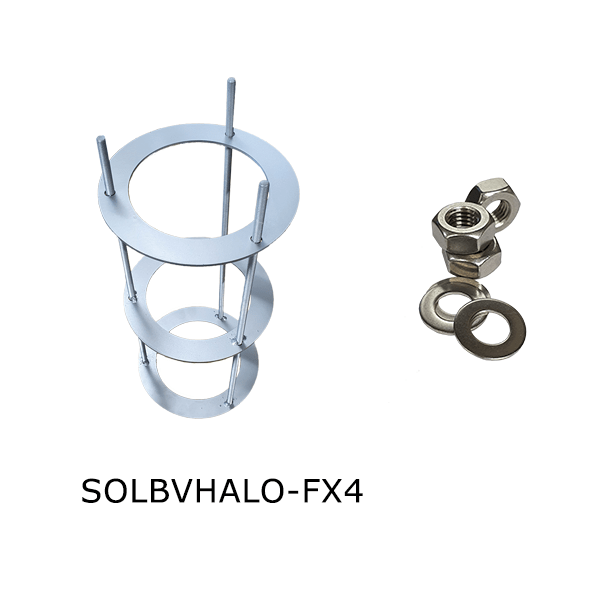

SOLBV-FX4

Medium security baseplated, footing required – 1 x Custom “Rag Bolt” cage,

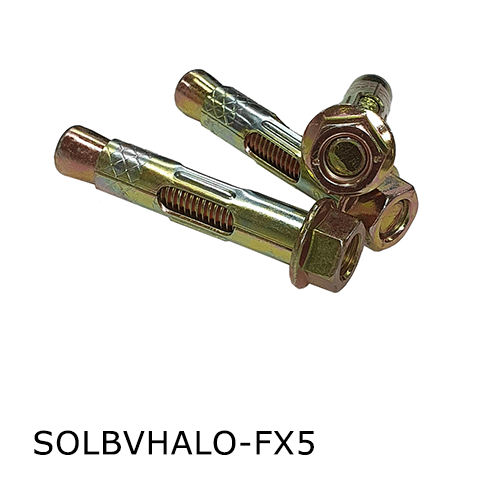

SOLBV-FX5

Medium security baseplated to existing slab – 4 x M10*65mm stainless steel dynabolts, 4 x M6*20mm stainless steel solar head fixings

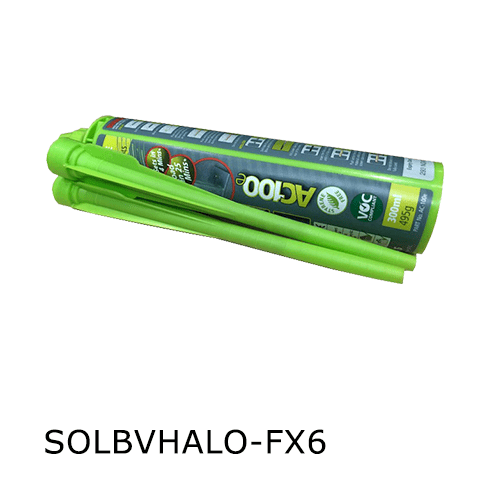

SOLBV-FX6

1 x 300ml tube Chemset Epoxy (up to five bollards) Will fit standard chalking gun, not supplied.

Reviews

There are no reviews yet.

Be the first to review “HALO SOLAR BOLLARD INSTALL KITS”

SOLBVHALO-FX1

Download

SOLBVHALO-FX2

Download

SOLBVHALO-FX3

Download

SOLBVHALO-FX4

Download

SOLBVHALO-FX5

Download

SOLBV-FX6

Download

Your installation option may not be listed above, this is not an issue. We would be pleased to make up custom kits and specifications for your installation, feel free to call if this is the case. Alternatively, we offer a full installation service WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work. FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
