Custom brackets or powdercoated columns manufactured on requests
Up to 190 lumen/watt LED output
Aluminium frame and components in a powder coated black finish (RAL9005)
Mounting height of 4 – 6 metres
25 year warranty on solar panel and light fitting, 10 year warranty on batteries and electronics. Warranty covers faulty workmanship or component failure not influenced by external means*

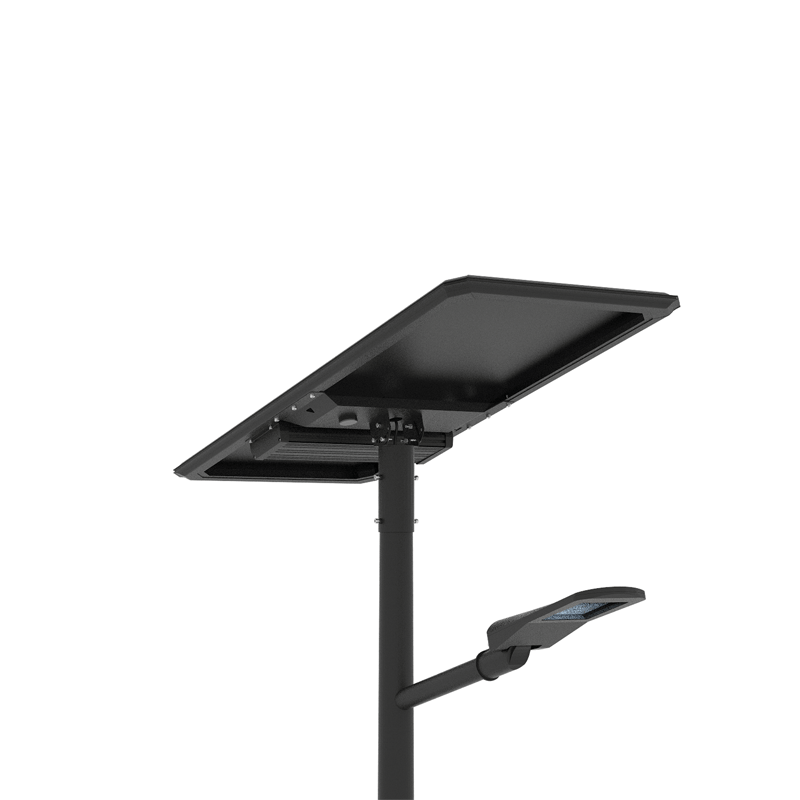

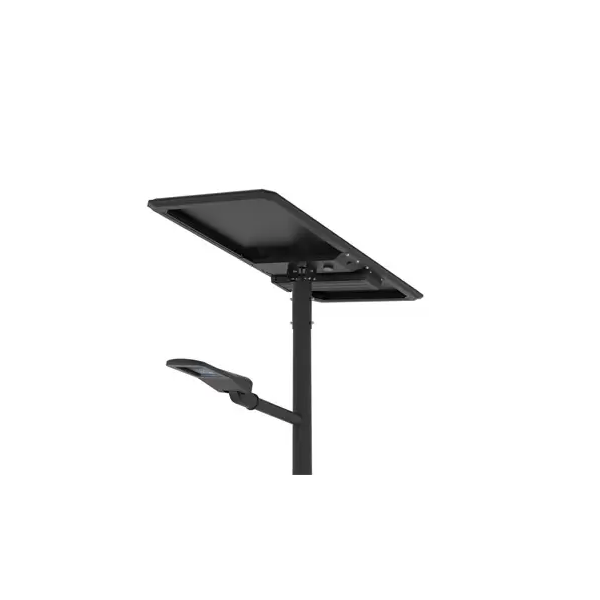

The SLD Modular-Pro Solar lighting range offers scalable lighting output from a modular solar lighting system. All Modular Pro Series systems combine premium components, quality construction and are built specifically to suit the application. The modern design of the SLD Modular-Pro Solar Light incorporates the solar panel, battery, and LED array into one post top mounted, streamlined, and efficient Solar fitting.
Outputs from 10w to 60w in either single or twin light heads are available. Constant output dusk to dawn, motion detected PIR sensor activated, or custom programmed lighting are available options. The use of premium Lifepo4 battery and intelligent lighting control combined with 5050 SMD LED’s producing up to 190+ lumens per watt provide an exceptional light output from these solar luminaires.
CUSTOMISED OPERATIONAL MODESDefault program - The unit will operate at 30% output adjusting to 100% output when the PIR is activated, returning to 30% output when no movement is detected.
Custom Programming – Custom lighting programs to suit specific lighting requirements.
PREMIUM 24V SYSTEMThe primary benefits of a 36V solar panel and 24V battery system is their increased efficiency compared to 12V systems. Higher voltage systems allow for lower current, which reduces power losses in the wiring and makes the overall system more efficient.
WHAT IS A LUMEN?
In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.
FAMILIAR EXAMPLES
A typical 4 x D cell battery maglite will emit approx. 70 lumens
The average path light using 2-3 LEDs emits 15-18 lumens
A 25W incandescent globe emits approximately 160 lumens
