SOLAR VARIABLE SPEED LIMIT SIGN

  • Ultra-bright, weatherproof, vandal resistant full dot matrix display
  • 3 rows of programmable animated annulus in red
  • Increase the visibility of the message and improve safety
  • >Reduces the speed of traffic by enforcing the awareness of speed limit
  • >96 hours autonomy
  • IP66 Waterproof design
  • IK10 Impact resistant polycarbonate screen
  • Powdercoated and lockable enclosure
  • Simple to install – Secures to a 90mm post
  • Efficient and effective visual enforcement
  • High visibility animated LED display
  • Portable or fixed versions available
  • 2 year warranty for faulty workmanship or component failure not influenced by external means.

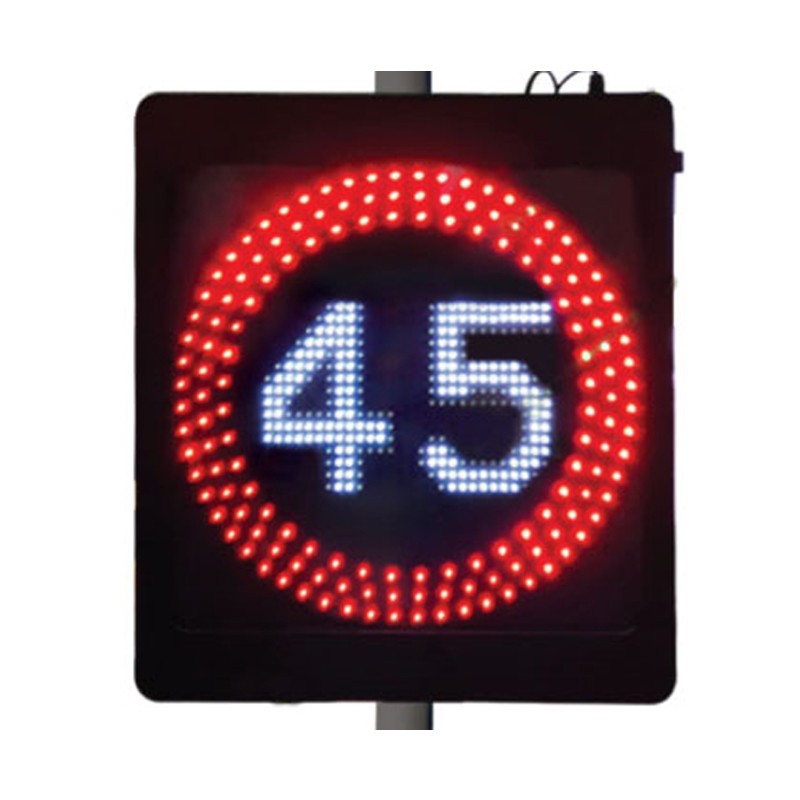

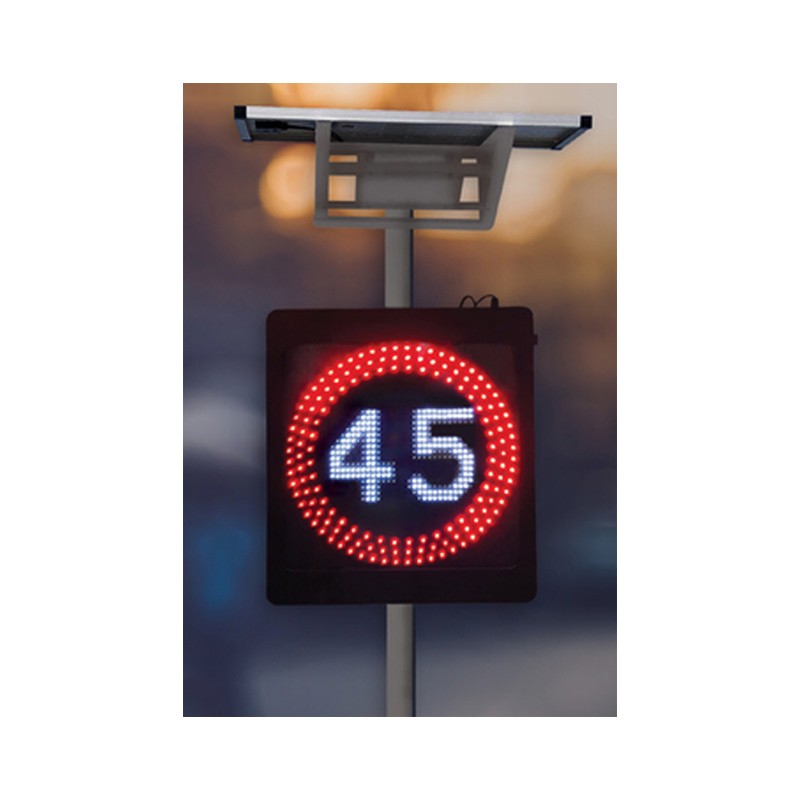

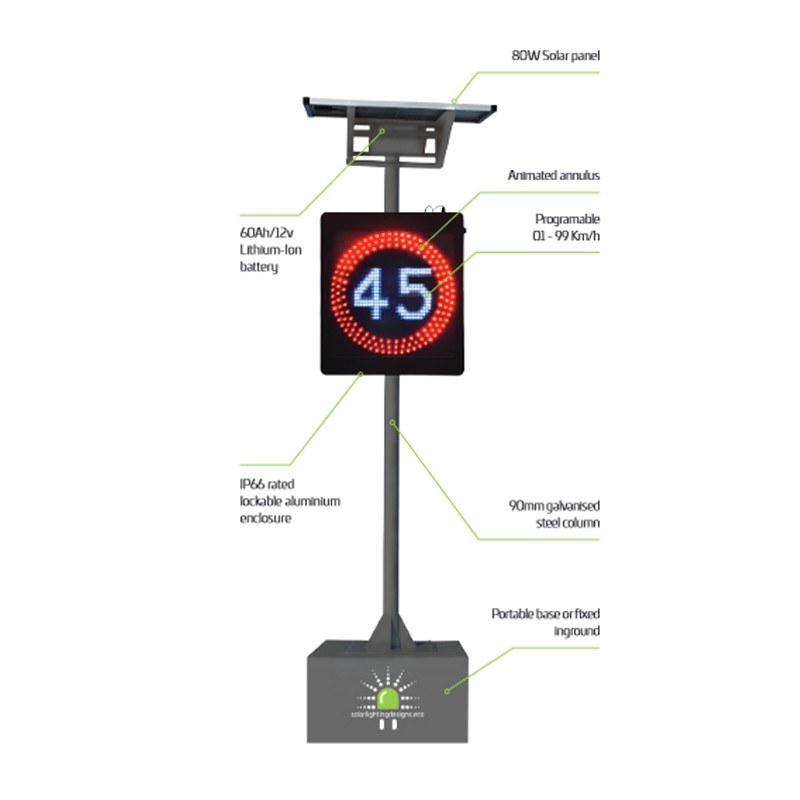

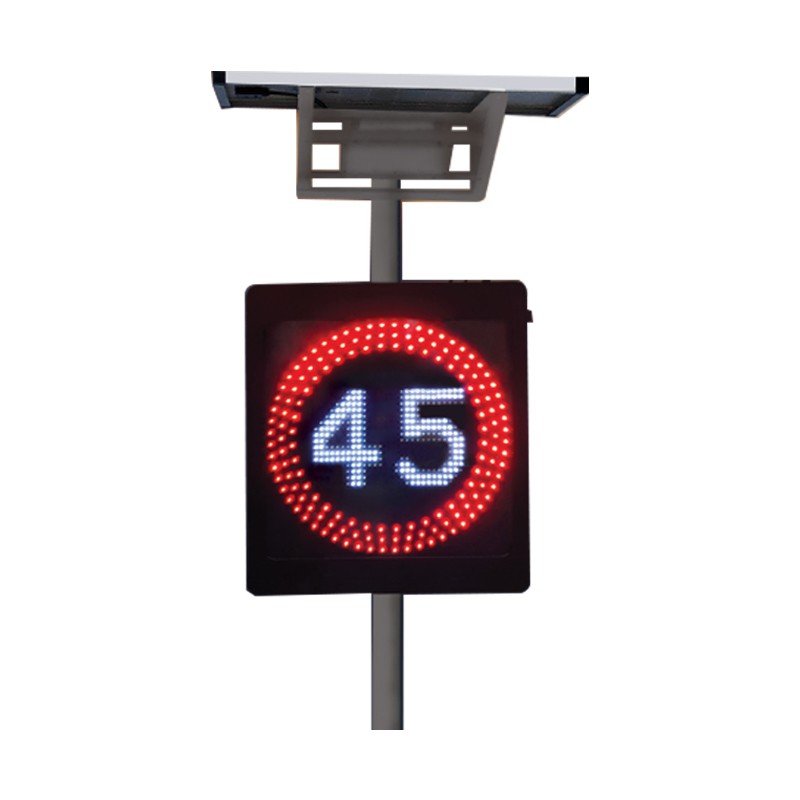

The Solar variable speed limit sign utilises ultra-bright, high quality and long-life LED technology to provide a highly visual, animated enforcement of the designated speed limit with a proven ability to influence driver behaviour.
The remote allows control over the full dot matrix display area to change the posted speed limit between 01 – 99 Km/h and the animation of the annulus (red rings)
Typically installed in areas where vehicles are in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campus. The unit is available in either a fixed or portable version. The minimal current draw allows the variable speed limit sign to be simply and effectively operated using solar energy. The auto dimming feature ensures consistency of LED brightness day or night and further conserves battery life.

Technical Data

SKU

SVSLS01

LED Screen

460 x 460mm

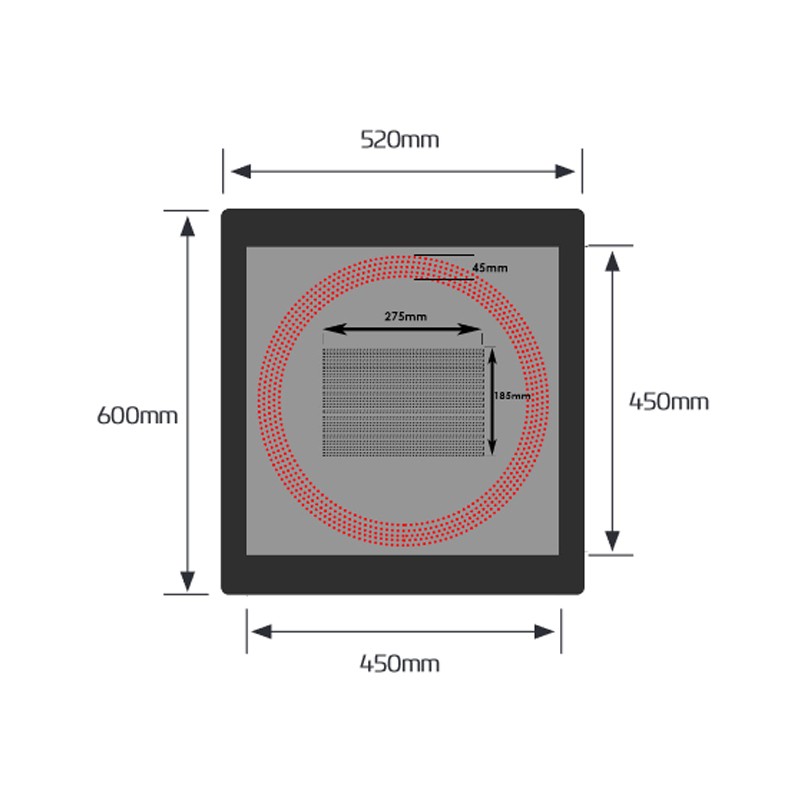

Sign Frame

520 x 600 x 90mm

Display Colour

Red Annulus/White numerals

Solar panel Wattage

80W

Led Output

Variable

Lumen Output

Automatic variable

Battery Type

Lithium – Ion

Battery Specifications

(720Wh) 60AH 12V

Autonomy

> 5 Nights, setting dependent

Light Source

190 x SMD LED

Radar Range

1 – 150 Mtrs

Recharge

6 hours

Mounting Height

2.1 – 3m

Standard Mounting

90mm galvanised steel column

Finish

Powdercoated aluminum

Warranty Period

2 years

Reviews

There are no reviews yet.

Be the first to review “SOLAR VARIABLE SPEED LIMIT SIGN”

SPEED LIMIT SIGN SPECIFICATION

Download

OPERATIONAL MODES Continuous operation day and night. Remote controlled change of the speed limit and the animation of the annulus (red rings).

WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
