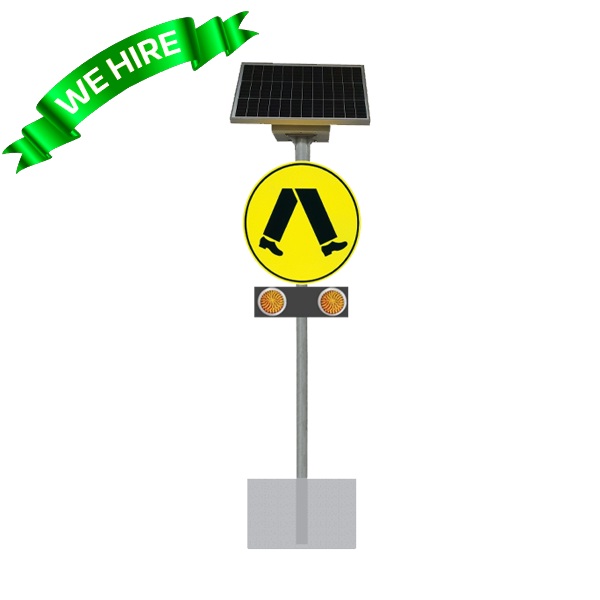

Solar LED Enhanced Road Signs

  • This solar system can be applied to any sign
  • Signs manufactured to Australian standards
  • Increase the visibility of the message and improve safety
  • Automatic dusk to dawn or 24 hour operation
  • > 5 nights autonomy
  • IP65 Waterproof design
  • Day and/or night operation

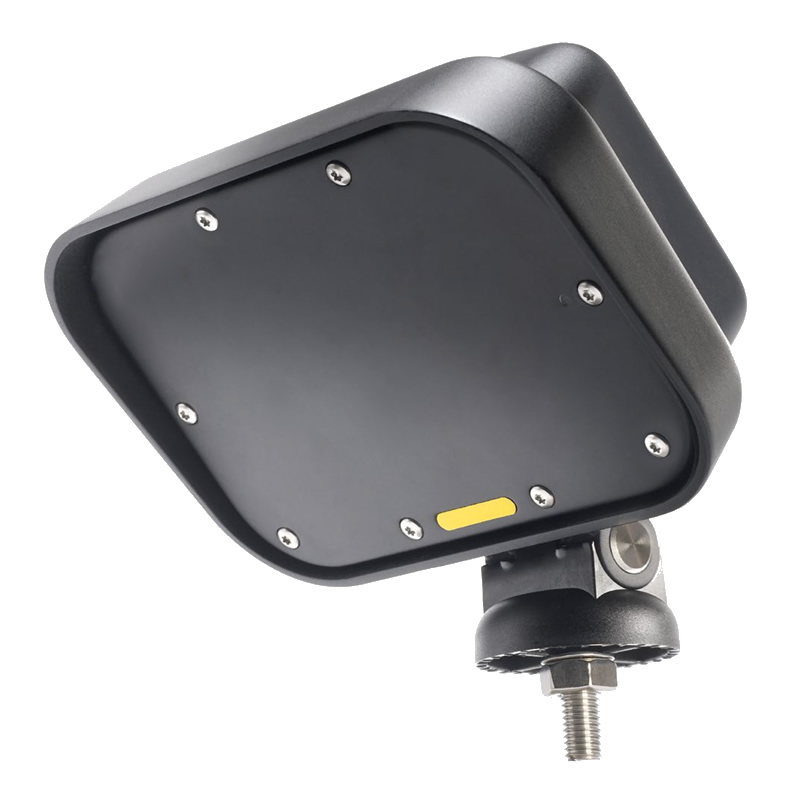

  • Optional doppler traffic radar available
  • Quality LIFeP04 battery
  • Simple install – Secures to a standard 60mm signpost
  • Alternative regulatory signs available
  • Efficient and effective visual enforcement
  • 2-year warranty for faulty workmanship or component failure not influenced by external means

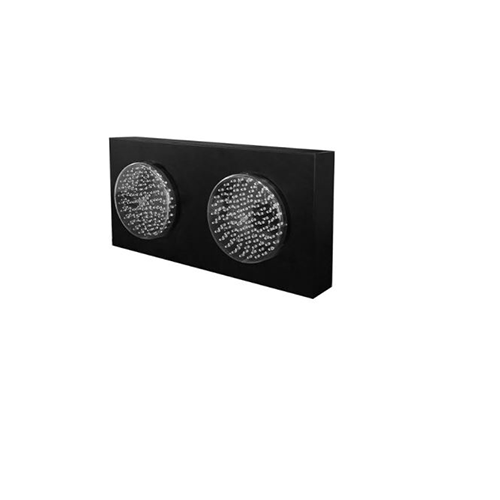

The solar LED enhancing of road signs is a simple and effective way of increasing the visibility of the message and improving safety for pedestrians and vehicles. The standard model employees a cased pair of synchronised ultra-bright reflective backed LED\'s that operate day and/or night and are visible up to 1000 metres. The unit is available in either a fixed or portable version.

Options include:

  • Alternative sign face and size - Standard and custom signs available in any size
  • Fully backlit/edge lit sign face - The entire sign face is backlit illuminated and high output LED\\\'s border the sign face
  • Edge lit sign face - High output LED\'s boarder the sign face
  • LED Push button - Sign face animation activated by pedestrian
  • Magnetic Switch - Sign face animation activated by gate or door opening
  • Pedestrian detection - Sign face animation automatically activated by approaching pedestrian
  • K Band radar traffic detection - Sign face animation automatically activated by approaching vehicle

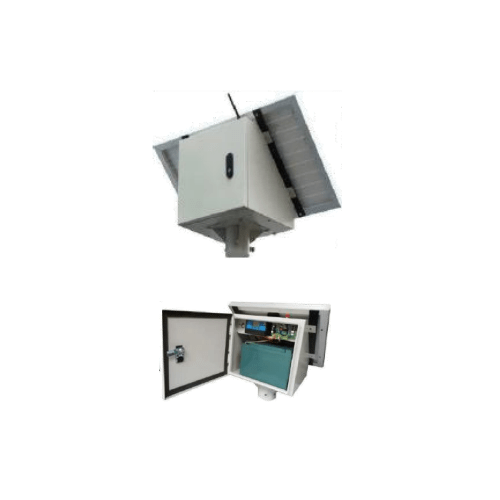

A solar panel connected to high-quality LiFeP04 battery allows up to 72 hours of LED operation from a full charge (setting dependent) The signs are manufactured to Australian standards from aluminum and 3M reflective material and attach to standard 76mm galvanised signposts. The solar panel can be rotated 360 degrees horizontally ensuring maximum photovoltaic conversion and minimum battery recharge time. This style of semi-integration solar panels are a great option for areas that do not receive full sun all day or where the best position for the sign face is not the optimum position for the solar panel

Description



Technical Data

SKU

SOLSIGN1

Sign Face Material

3M Class One Reflective

Solar Panel Wattage

60W/80W

Display colour

Variable

LED Output

Variable

Lumen output

Variable

Battery Type

LIFePO4

Battery Specifications

36Ah/60Ah 12v

Autonomy

> 5 Nights, setting Dependent

Light Source

SMD LED

Mounting height

2.1 – 3 metres

Standard mounting

Galvanised Steel Column

Warranty

2 years

Reviews

There are no reviews yet.

Be the first to review “Solar LED Enhanced Road Signs”

Solar Enhanced Road Signs

Download

OPERATIONAL MODES Remote controllable selection of flashing dusk to dawn or constant 24 hour operation. Alternative modes of operation are available on request.WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work. FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
