SOLAR ADVERTISING & WALL LIGHTING

  • Stylish and functional solar lighting
  • Pivoting LED module delivers lighting control
  • Programmable smart lighting
  • Automatic dusk to dawn operation

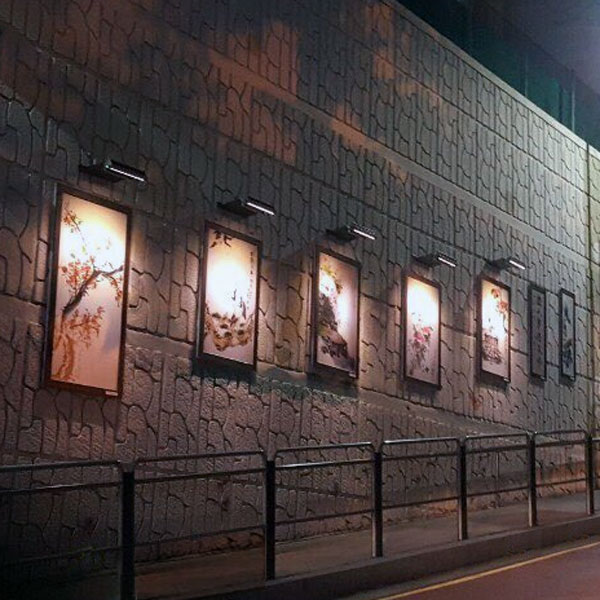

  • Wall or decorative lighting, advertising or highlighting
  • Premium-grade solar lighting
  • Adjustable LED and panel bracketing
  • Integrated all-in-one design
  • LED face up or down
  • Temporary or permanent installations
  • Fully sealed cast aluminium body in an anodized finish
  • 2 year warranty for faulty workmanship or component failure not influenced by external means

Technical Data

SKU

SOLL009/10 – SOLL009/20

Solar Panel Wattage

6W / 12W

LED Output

10W / 20W

Lumen Output

230 Lumen/460 Lumen

Battery Type

Lithium

Battery Specifications

(29.6Wh) 8AH/(55.5Wh) 15AH @3.7V

Autonomy

Setting Dependant

Correlated Colour Temp (CCT)

6000K

Fixture Size

550 (I) x 130 (w) x 72 (h) mm

1100 (I) x 130 (w) x 72 (h) mm

Light Source

SAMSUNG 2835

Recharge

6 hours

Mounting Height

Variable

Mounting

Variable

Finish

Anodized Aluminum

Warranty Period

2 years

Reviews

There are no reviews yet.

Be the first to review “SOLAR ADVERTISING & WALL LIGHTING”

SOLAR ADVERTISING & WALL LIGHTING

Download

SOLAR ADVERTISING INSTRUCTIONS

Download
MODE OF OPERATION Depress button 5 seconds to switch ON/OFF.Default is M1 M1: (LED 1 flash) 6hrs 100% output to 50% of battery capacity > 20% to dawn M2: (LED 2 flash) 5hrs 100% brightness > intermittent flashing to dawn M3: (LED 3 flash) 6hrs 100% brightness > 20% to dawn M4: (LED 4 flash) 100% brightness dusk to dawnApplicationsSign | Wall Wash | AdvertisingWHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
