Foundation cageFoundation cage

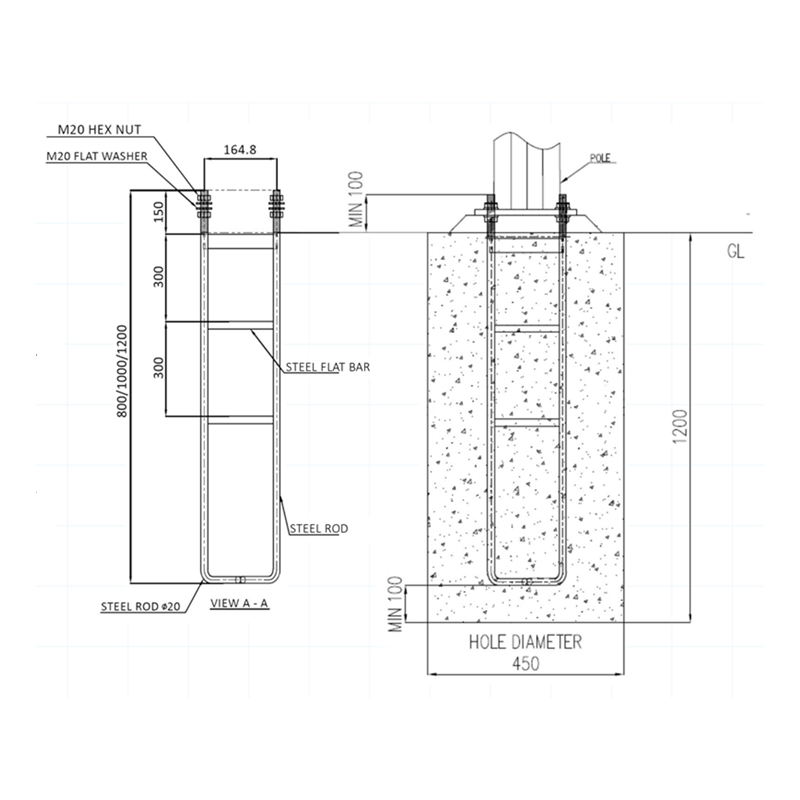

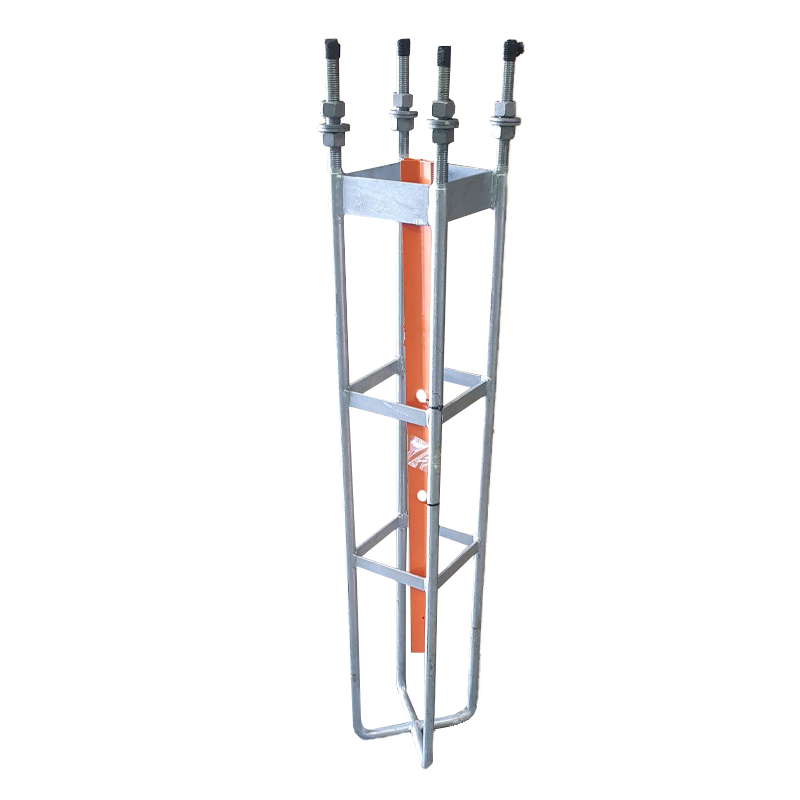

SLD M20 FOUNDATION CAGE

  • Foundation bolt/cage to be fully welded construction in accordance with as 1554.1 weld symbols comply with as 1103.3
  • Hot dip galvanised after fabrication
  • Concrete to have a minimum characteristic strength of 32MPa or 40MPa where an exposure classification of moderate is determined
  • Minimum clear concrete cover to be 65mm
  • All concrete shall be placed and vibrated to optimum compaction
  • Pile casings to be used for constructions purposes where required
  • Engineering advice is to be sort where soils are assessed to be of exposure classification severe or greater
  • Soil classification to be determined by a geotechnical engineer
This table is to be used as a guide only. All pile specifications should be confirmed with an appropriately qualified engineer prior to construction. M20 Foundation bolt/cage assembly on 233mm PCD. Based on average soil conditions. Certification by others.

Technical Data

Soil Type As defined in AS/NZS 4676: 2000 Appendix

Firm Damp Clays; Sandy Clays; Damp Sands
Fb > 100KPa

Pile Diameter

450mm

Pile Length

1200mm

Cage Bolt Assembly

M20

Bolt Pattern

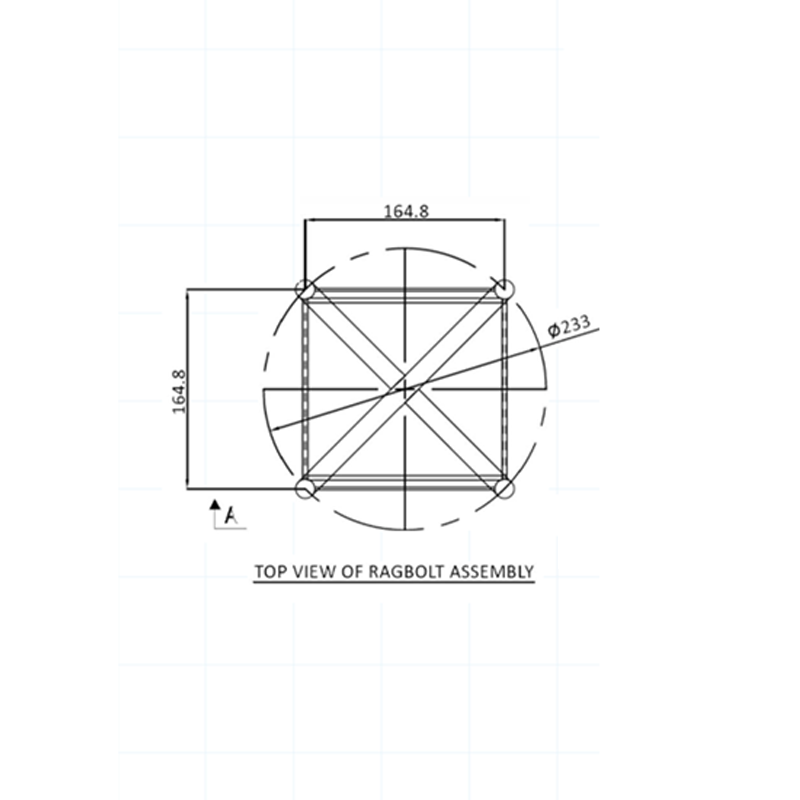

4 M20 on 233 PCD

Ultimate Base Moment

10.1 kNm

Ultimate Base Shear

2.5 KN

Reviews

There are no reviews yet.

Be the first to review “SLD M20 FOUNDATION CAGE”

SLD M20 Foundation Cage Data Sheet

Download
