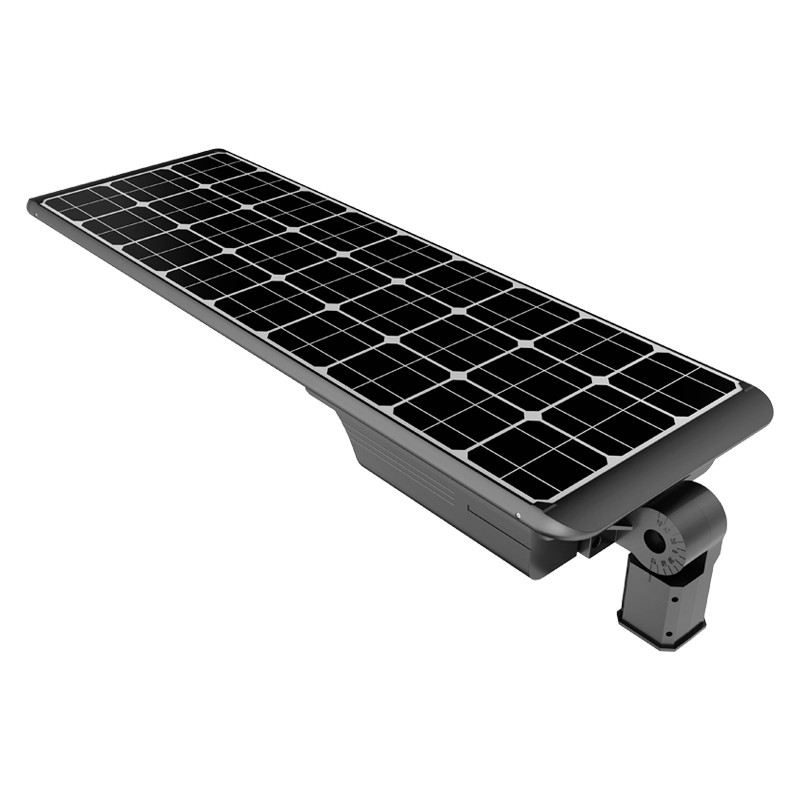

BLADE 40W SOLAR LIGHT V2

  • Stylish and functional solar lighting

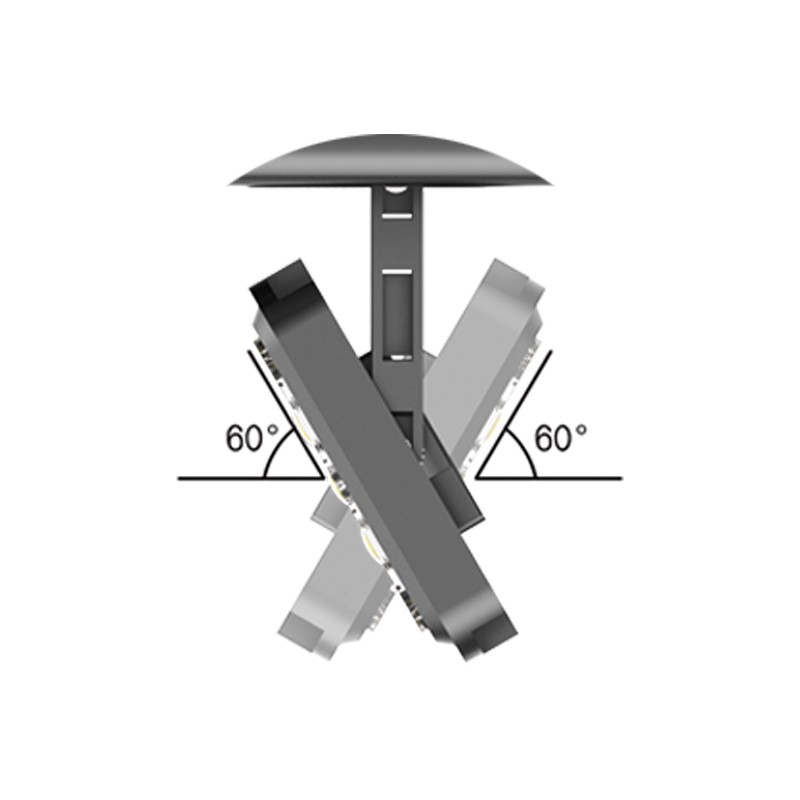

  • Pivoting LED modules deliver lighting control
  • Programmable smart lighting
  • Pre-installed IOT capability
  • Ideal for illuminating paths, cycleways, and medium size areas
  • 190 lumen/watt LED output
  • Integrated all-in-one design
  • Mounting height of 4 – 8 metres
  • Premium-grade solar lighting. Fully sealed cast aluminium body in a powder coated black finish
  • Custom brackets or powder coated poles manufactured on request
  • 10 year warranty for faulty workmanship or component failure not influenced by external means

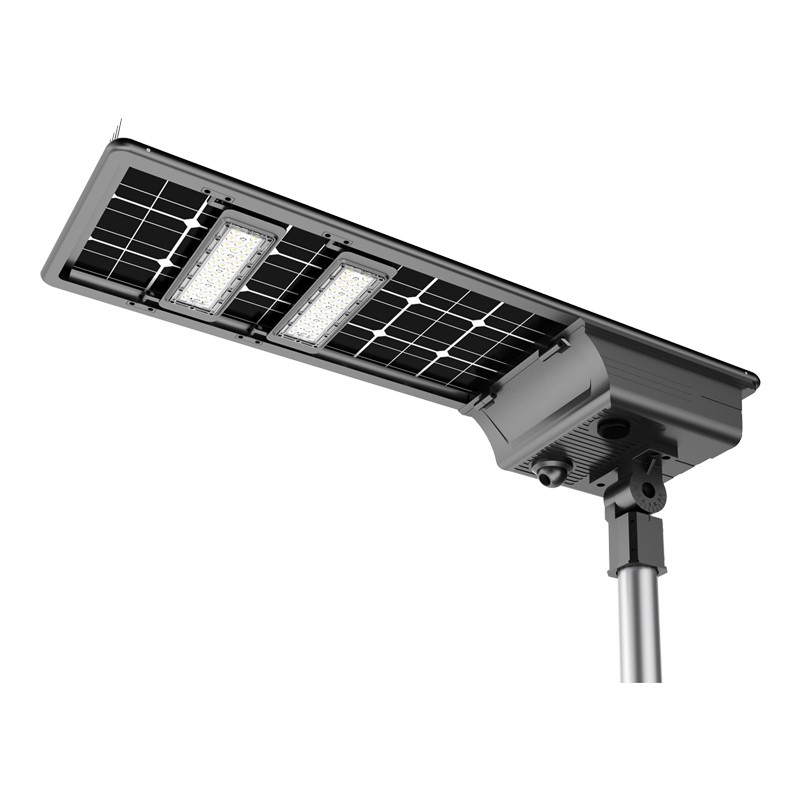

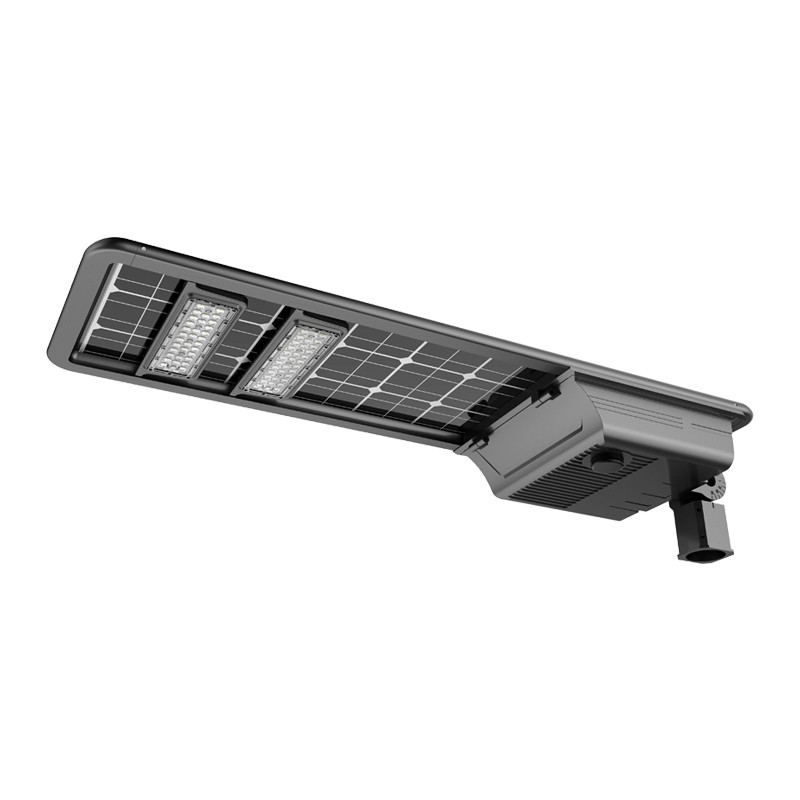

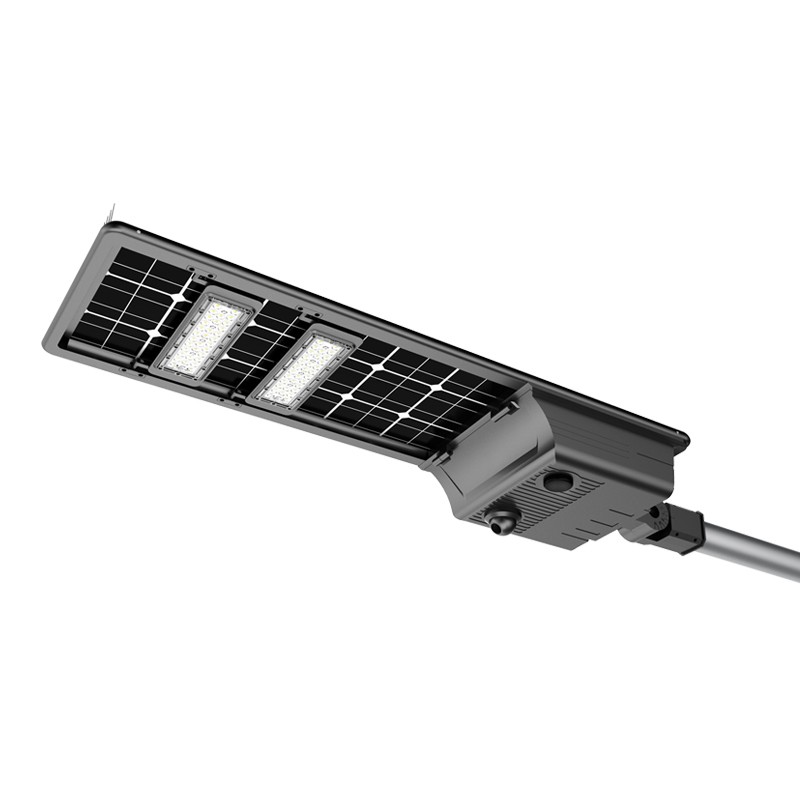

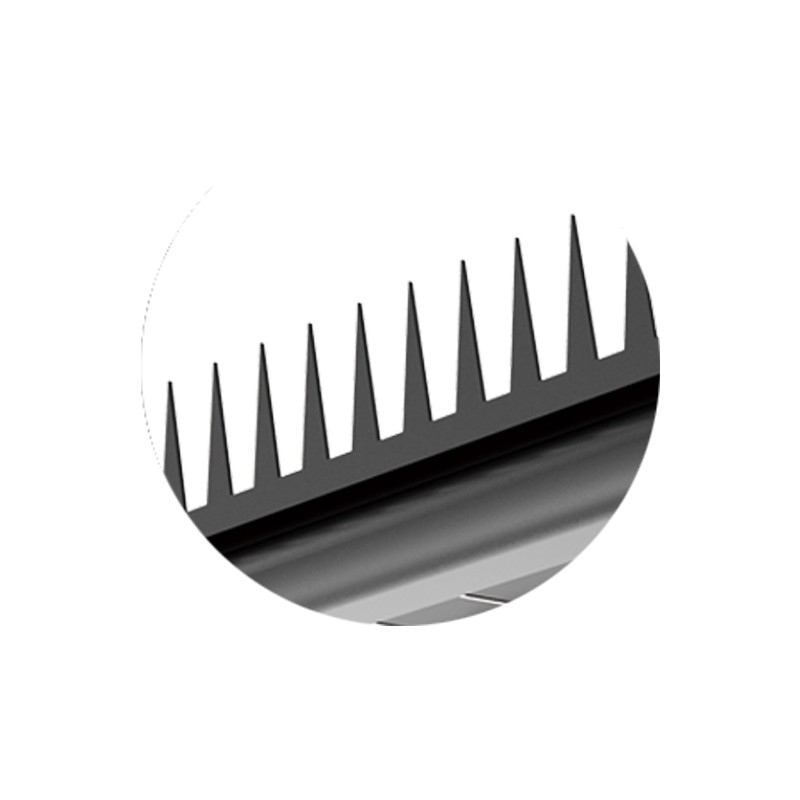

The SLD Blade range offers all-in-one, stylish, and functional solar lighting. Independently pivoting LED modules permit full control over the direction and distribution of the lighting pattern and if required allows panel to be orientated for maximum photovoltaic conversion. Our custom designed MPPT solar charge controller has IOT capability pre-installed and is initiated by adding a network gateway. Bird spikes and post mount brackets standard features. The balance of a premium LiFePO4 battery combined with the exceptional light output achieved by 195 lumen/watt Phillips LED’s, all controlled by a programmable smart lighting program, delivers superior dusk to dawn lighting and high levels of autonomy. Column or wall installation brackets are available ensuring ease of installation without the need for trenching, cabling, or an electrician.

Description

Technical Data

Solar Panel Wattage

60W

LED Output

40W

Lumen Output

8382 lm

Battery Type

LiFePO4

Battery Specifications

12.8V 30AH (384Wh)

Autonomy

> 5 nights

Correlated Colour Temp (CCT)

6000K

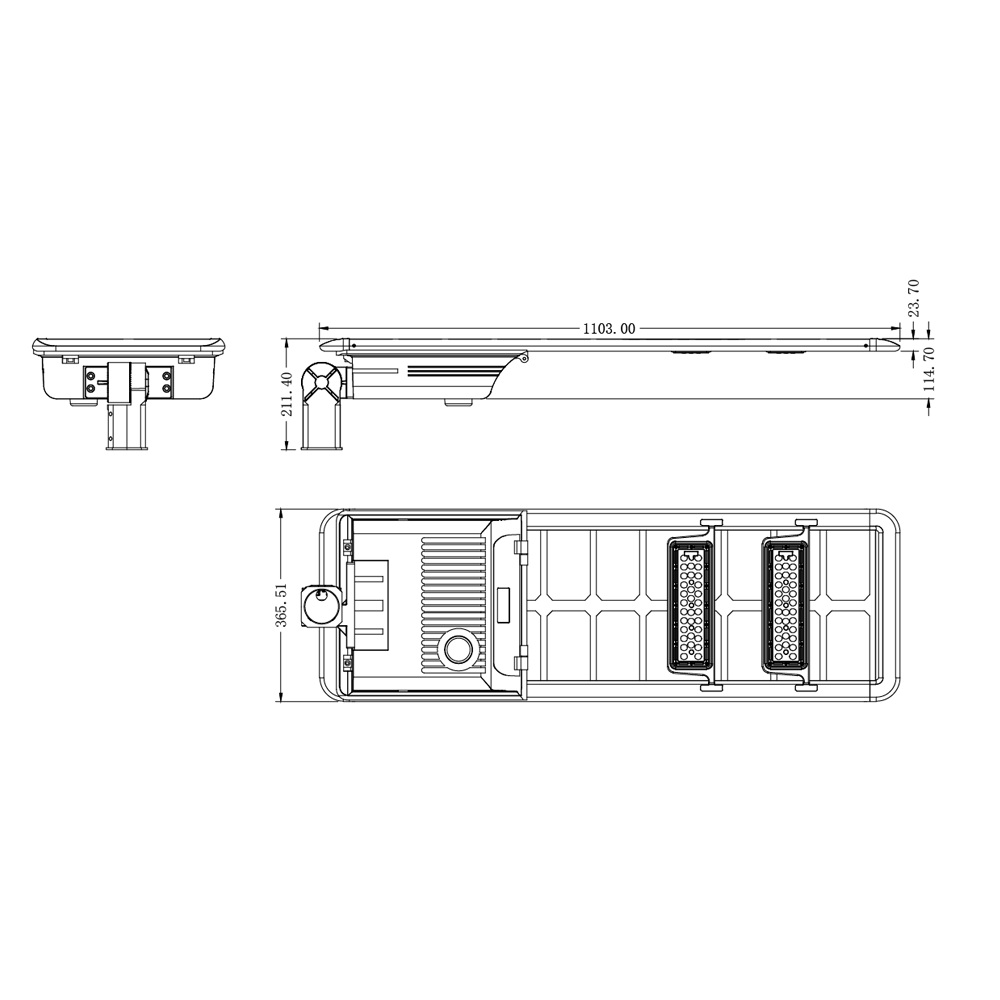

Fixture Size

1103 (I) x 365 (w) x 211 (h) mm

Light Source

Philips 5050 LED

Recharge

5 hours

Mounting Height

5 – 7 metres

Mounting

60mm column – 60mm spigot

Finish

Powder coat satin black

Warranty Period

5 years

Lighting Distribution Dimensions

Reviews

There are no reviews yet.

Be the first to review “BLADE 40W SOLAR LIGHT V2”

40W-Blade-Specification

Download
OPERATIONAL MODES Default program - The P.I.R. (Passive infrared) sensor is activated by movement and acts as an energy saving feature. The unit will operate at 30% output adjusting to 100% output when the PIR is activated, returning to 30% output when no movement is detected.Custom Programming – Custom lighting programs to suit specific lighting requirements.WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
