BLADE 100W SOLAR LIGHT

  • High lumen output solar lighting
  • Pivoting LED modules deliver lighting control
  • Programmable smart lighting
  • Automatic dusk to dawn operation
  • Ideal for illuminating roadways, car parks and large areas
  • Premium-grade solar lighting
  • 180 lumen/watt LED output
  • Integrated all-in-one design
  • Mounting height of 8 – 12 metres
  • Fully sealed cast aluminium body in a powder coated black finish
  • Custom brackets or powder coated poles manufactured on request
  • 5 year warranty for faulty workmanship or component failure not influenced by external means

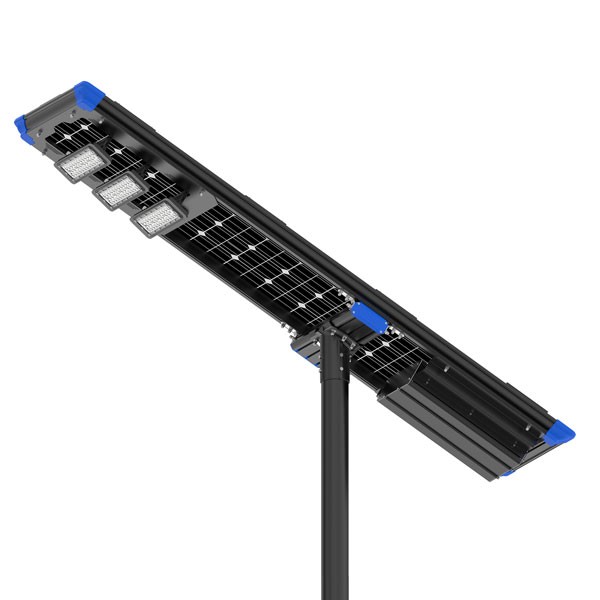

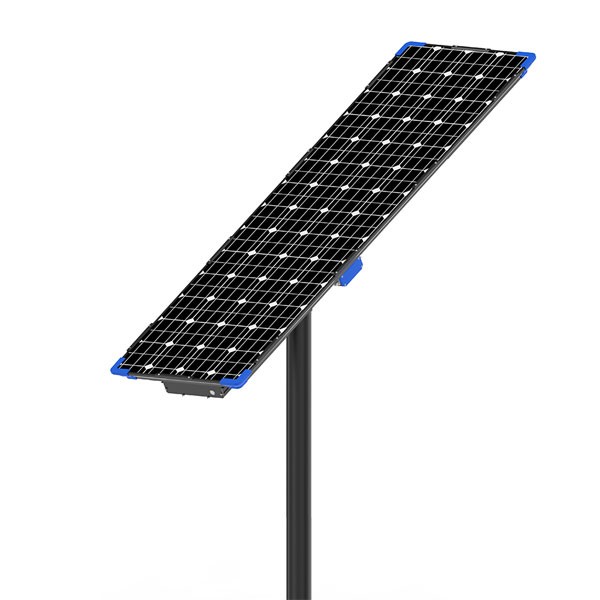

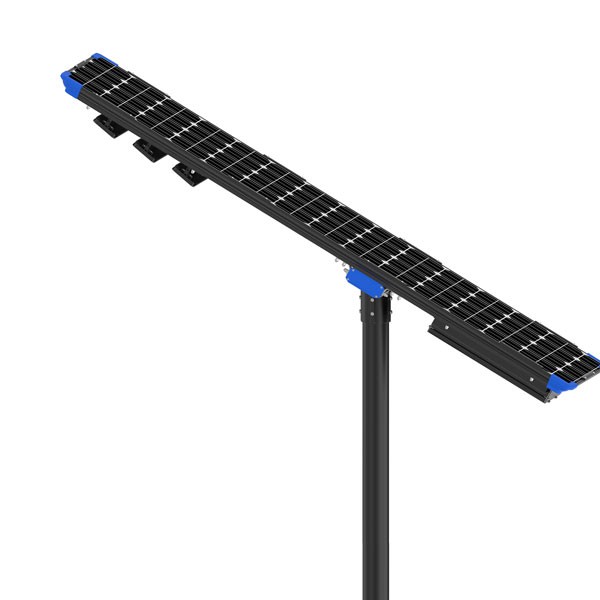

The Blade range offers all-in-one, stylish, and functional solar lighting. Independently pivoting LED modules permit full control over the direction and distribution of the lighting pattern and if required allows panel to be orientated for maximum photovoltaic conversion. Anti-theft alarm and bird spikes are standard features. CCTV, Bluetooth diagnostics and lighting control from a mobile device are optional. The balance of a premium LiFePO4 battery combined with the exceptional light output achieved by 220 lumen/watt Phillips LED’s, all controlled by a programable smart lighting program, delivers superior dusk to dawn lighting and autonomy exceeding five nights. Column or wall installation brackets are available ensuring ease of installation without the need for trenching, cabling, or an electrician.

Description

Technical Data

SKU

SOLL100/B

Solar Panel Wattage

160W

LED Output

100W

Lumen Output

18000 lm

Battery Type

LiFePO4

Battery Specifications

25.6V 36AH (722Wh)

Autonomy

> 6 nights

Correlated Colour Temp (CCT)

6000K

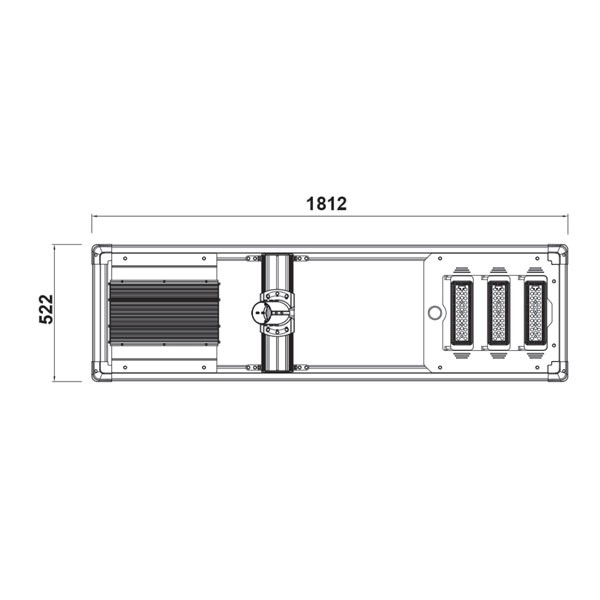

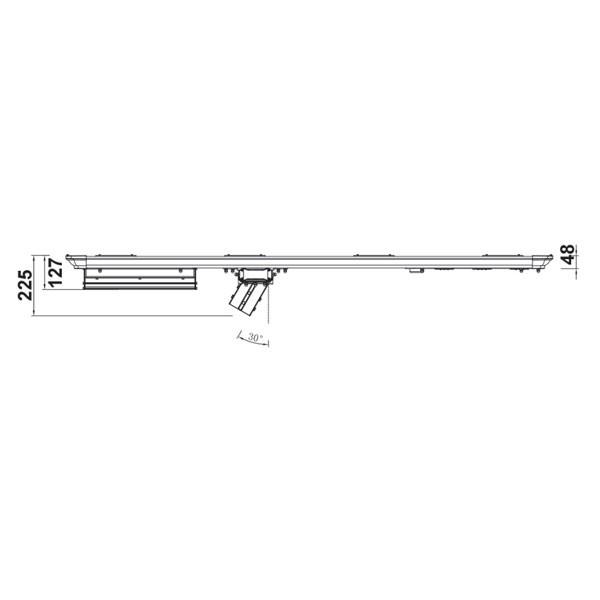

Fixture Size

1152 (I) x 522 (w) x 225 (h) mm

Light Source

Philips 5050 LED

Recharge

5 hours

Mounting Height

8 – 12 metres

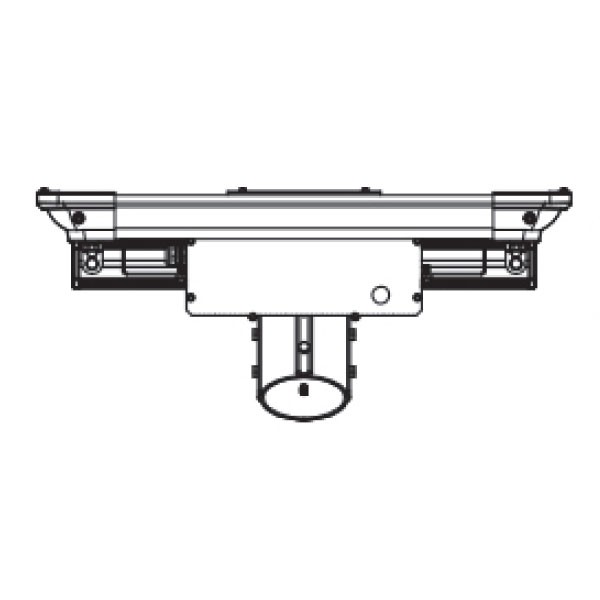

Mounting

60mm column – 60mm spigot

Finish

Powder coat satin black

Warranty Period

5 years

Reviews

There are no reviews yet.

Be the first to review “BLADE 100W SOLAR LIGHT”

100W Blade Data Sheet

Download

OPERATIONAL MODES Default program - The P.I.R. (Passive infrared) sensor is activated by movement and acts as an energy saving feature. The unit will operate at 40% output adjusting to 100% output when the PIR is activated, returning to 40% output when no movement is detected. Custom Programming – Custom lighting programs to suit specific lighting requirements.

LIGHTING DISTRIBUTION DIMENSION WHAT IS A LUMEN? In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
