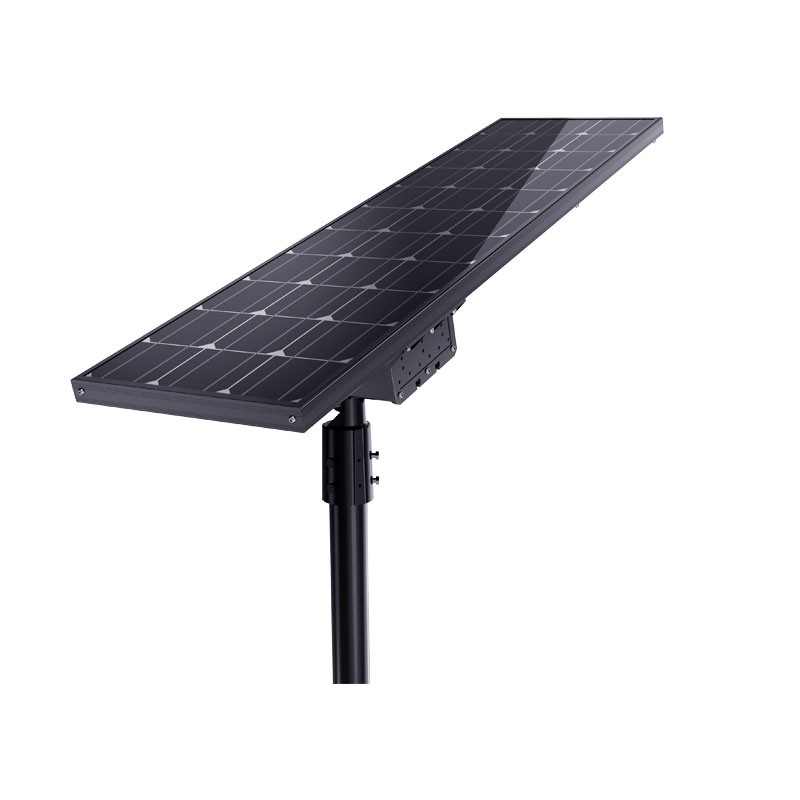

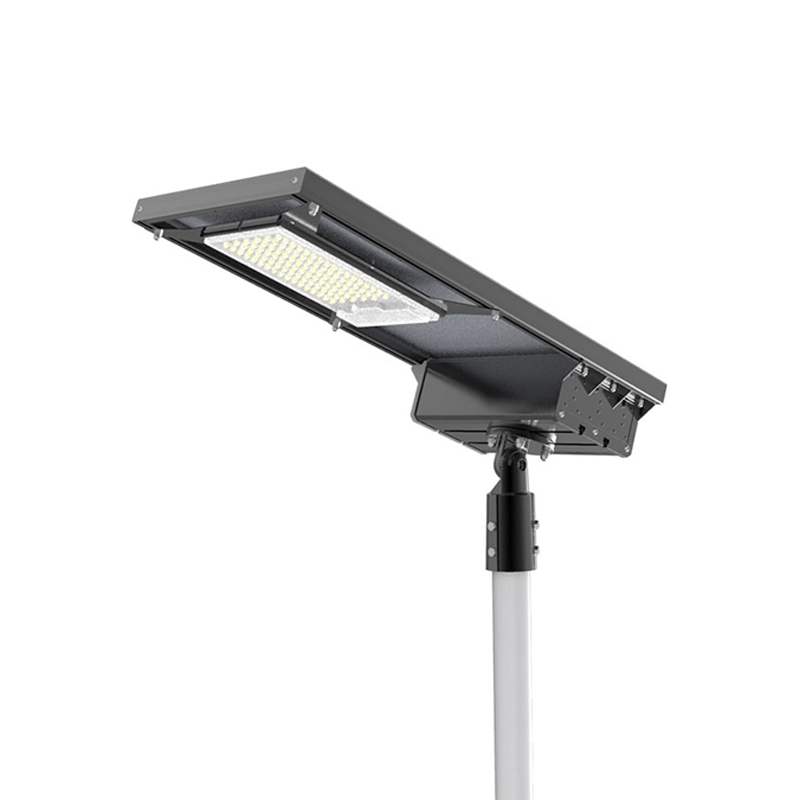

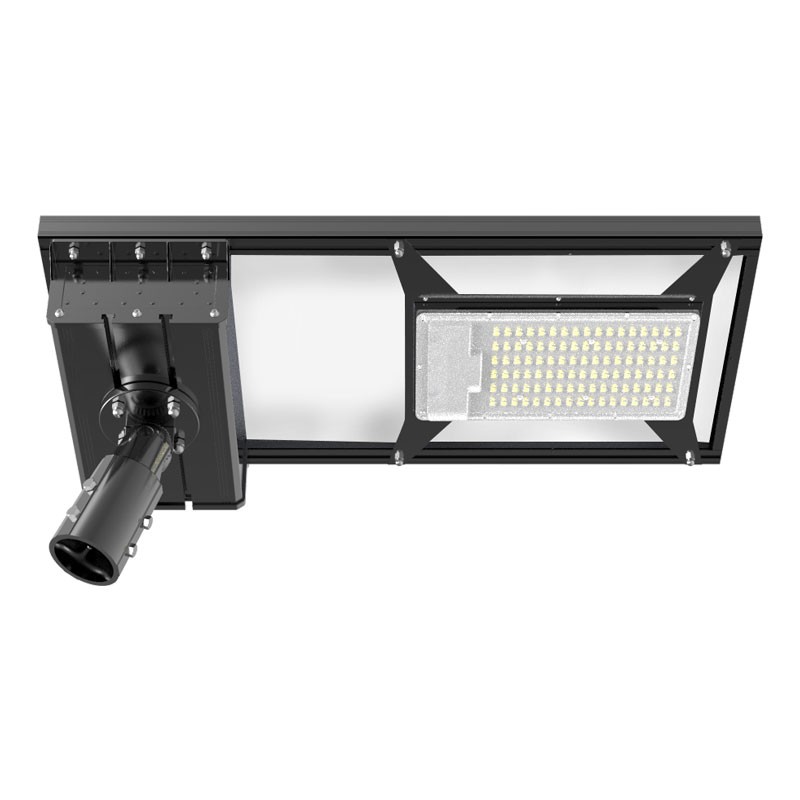

30W ECO BLADE AREA LIGHT

  • Economical range of area lighting
  • Equivalent to the output of a 150w halogen fitting
  • Automatic dusk to dawn lighting
  • Indictor lights show battery level
  • > 3 nights autonomy
  • IP65 Waterproof design
  • Cast aluminium body
  • Quality LifePo4 battery
  • Commercial grade solar lighting.

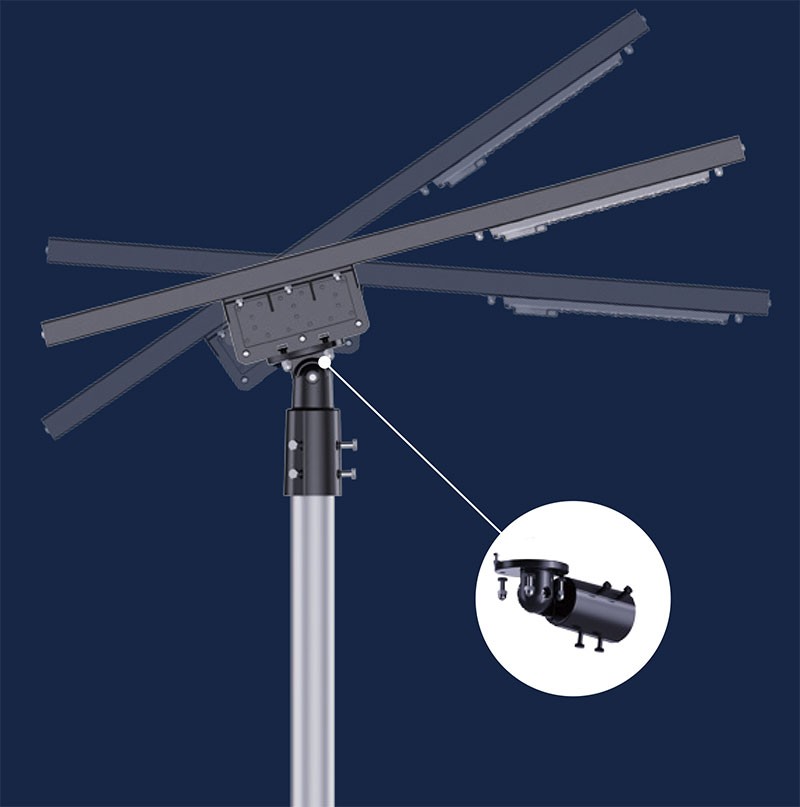

  • Knuckle style 60mm post bracket
  • Remote controlled timer, P.I.R and light output settings
  • 2 year warranty for faulty workmanship or component failure not influenced by external means

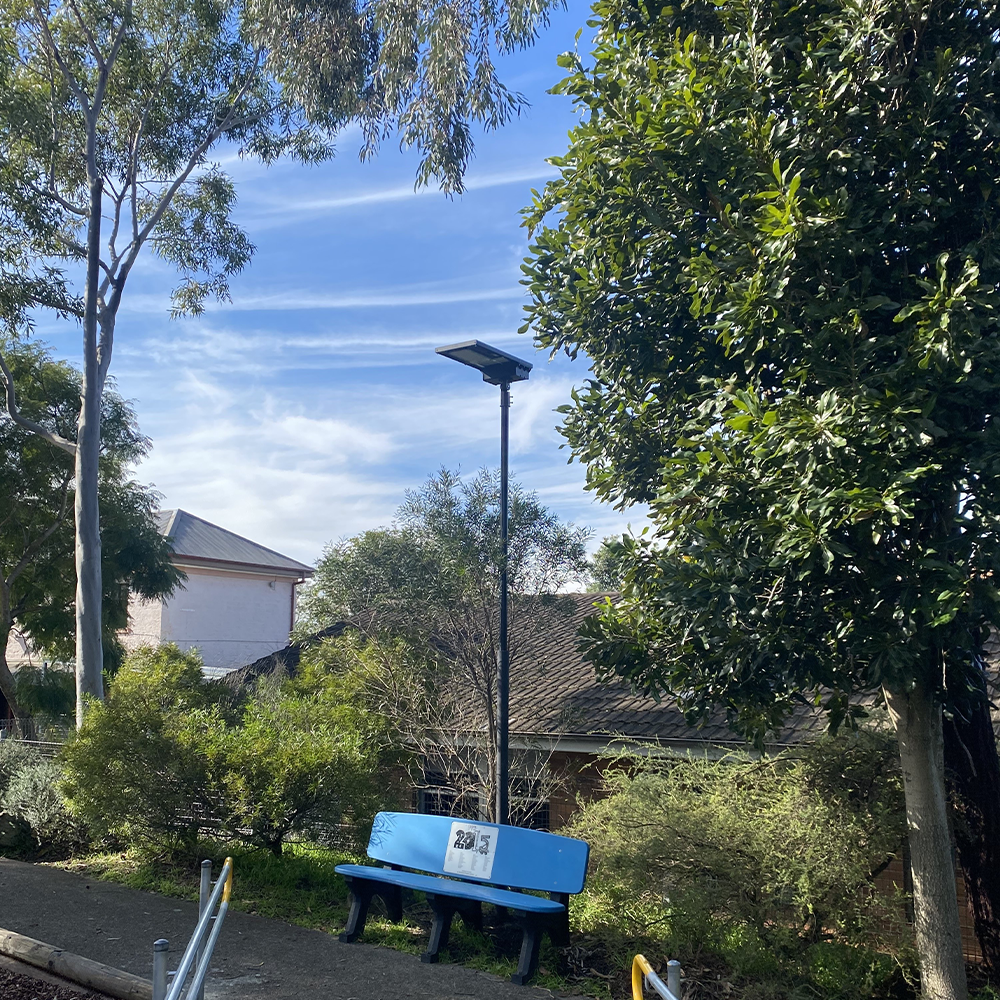

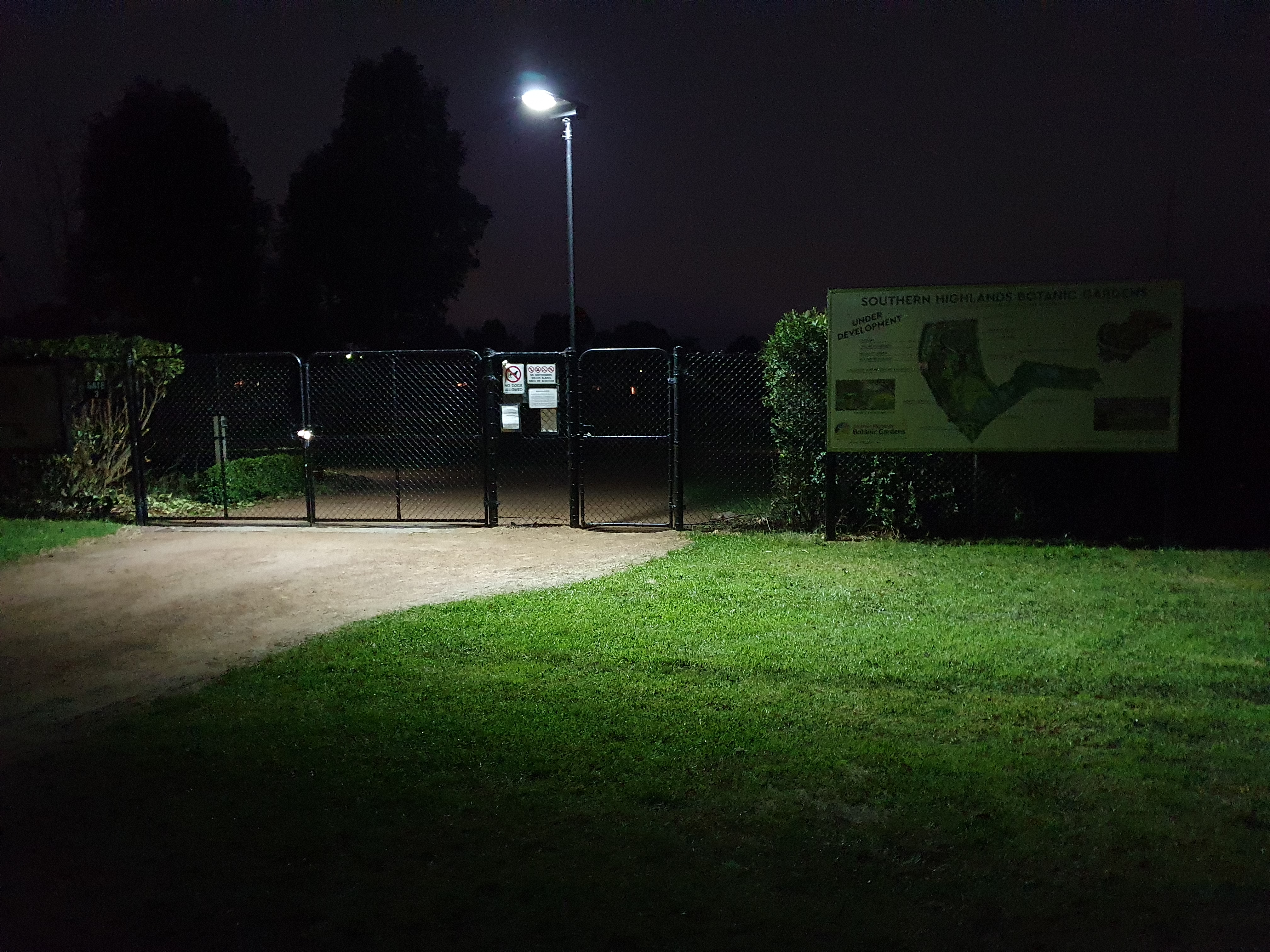

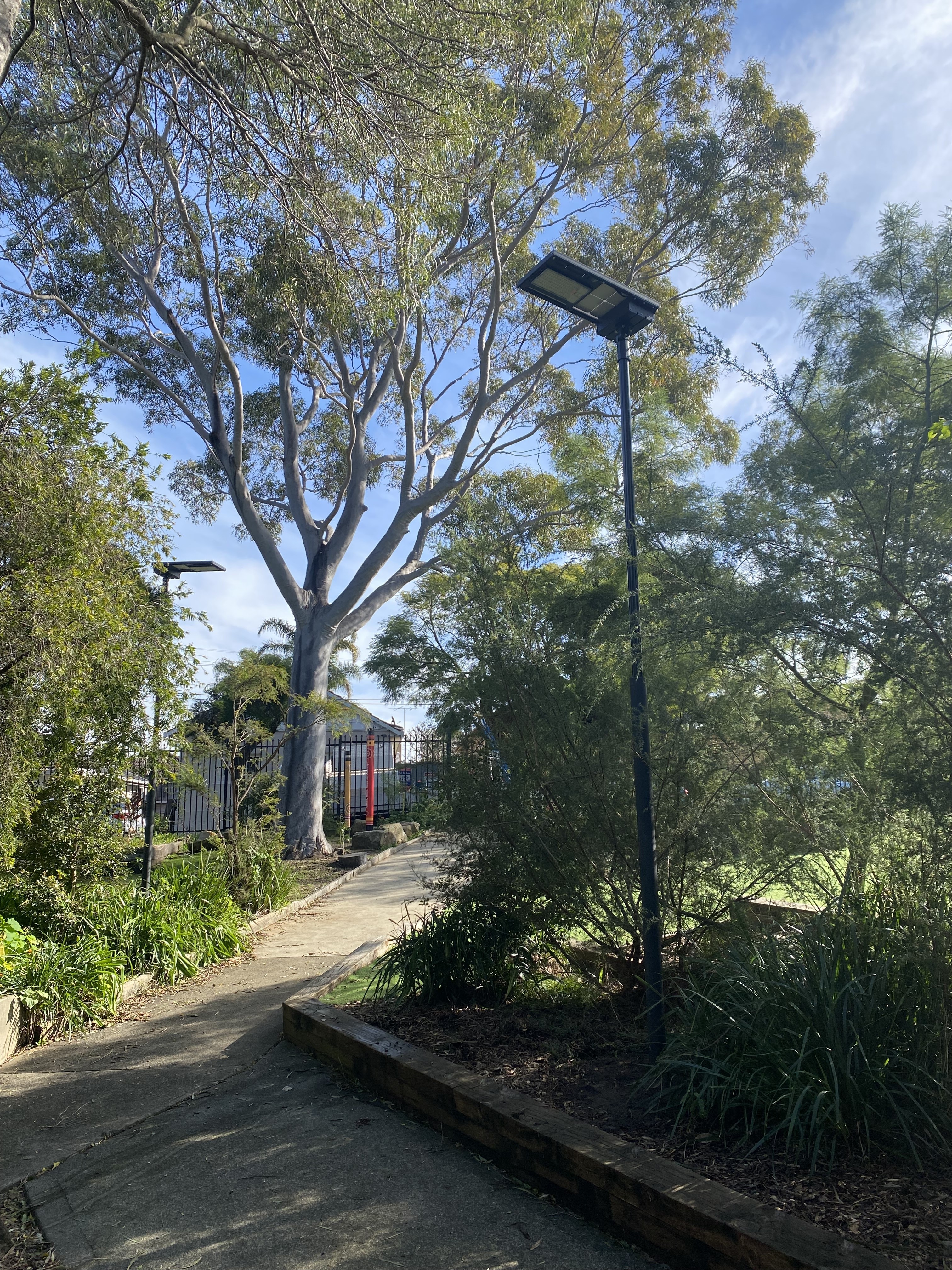

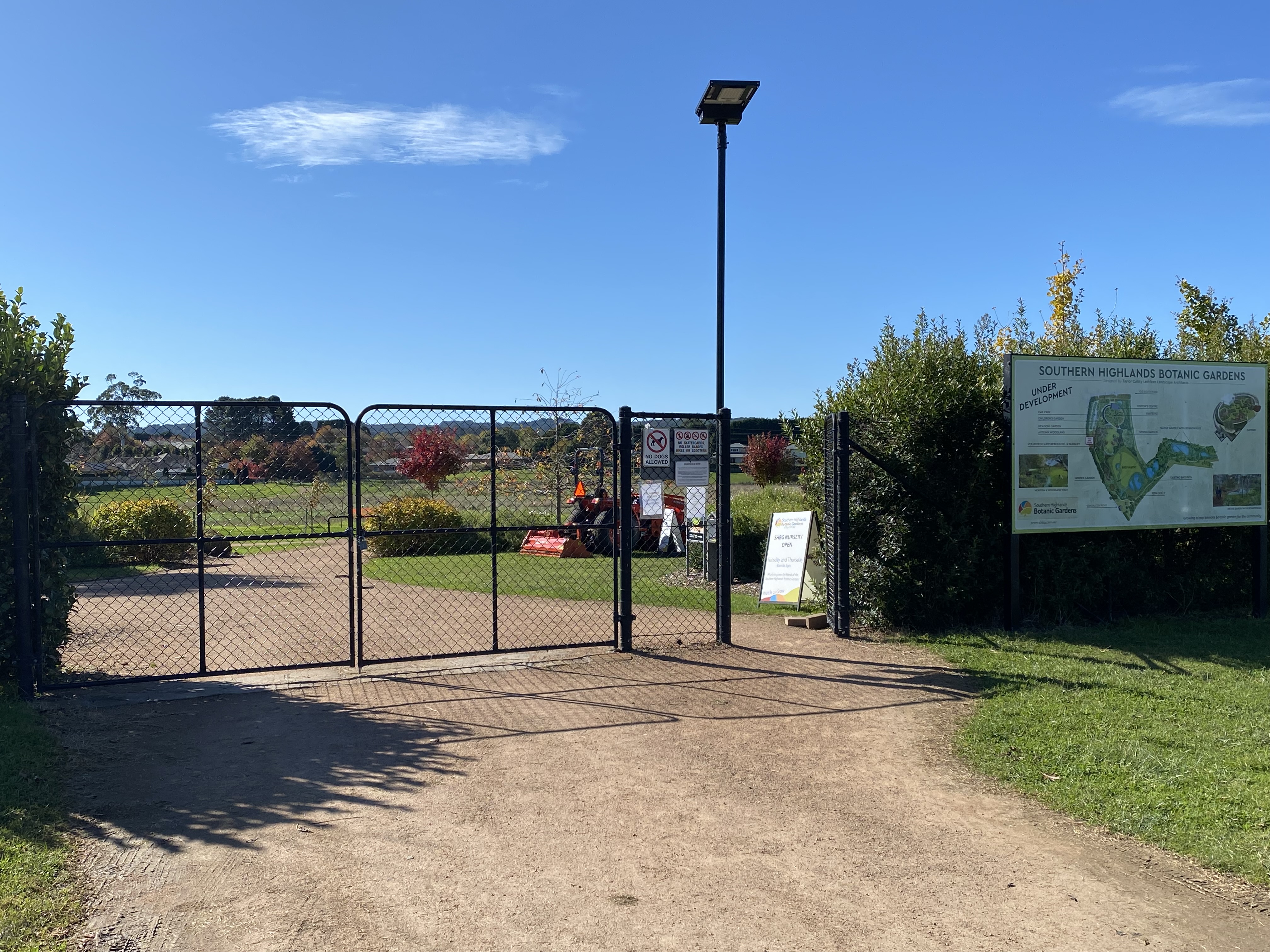

The Eco Blade solar area lighting offers cost-effective, automatic dusk to dawn lighting to large areas in light to medium commercial settings. An ideal lighting solution for dog parks, private car parks, driveways and areas that are moderately trafficked. The remote controls ON/OFF, multiple timed light output options and a combination of timed/passive infrared (PIR) sensor settings. The P.I.R. is activated by movement and acts as an energy saving/ safety feature increasing the lights output when movement is detected and reducing the output when movement is no longer detected. The “knuckle” style bracket allows for control over the lighting distribution dimensions.

Technical Data

SKU

SOLL30/ECO

Solar Panel Wattage

45W

LED Output

30W

Lumen Output

4000 lm

Battery Type

LiFePO4

Battery Specifications

80Ah 3.2V (256Wh)

Autonomy

> 4 nights

Correlated Colour Temp (CCT)

6000K

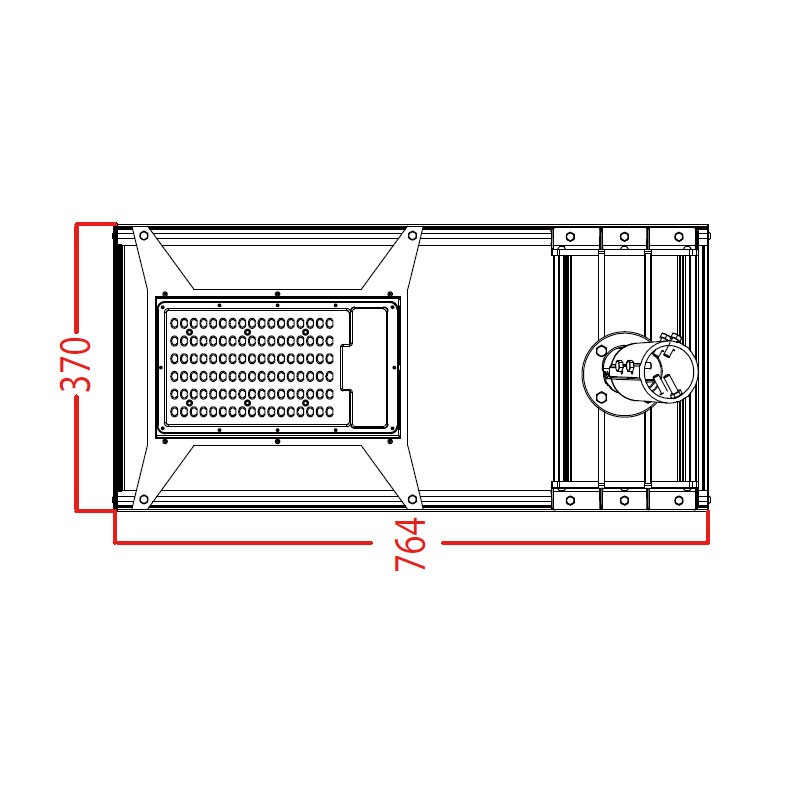

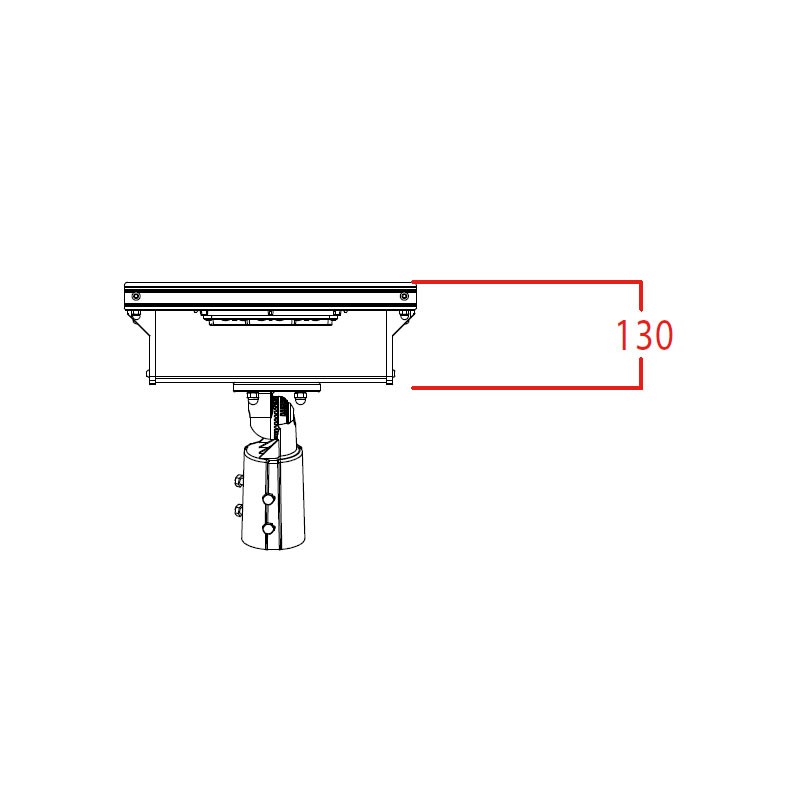

Fixture Size

764 x 370 x 130 mm

Light Source

Bridgelux

Recharge

6 hours

Mounting Height

3 – 5 metres

Mounting

Knuckle style 60mm post bracket

Finish

Powder-coated Black

Warranty Period

2 years

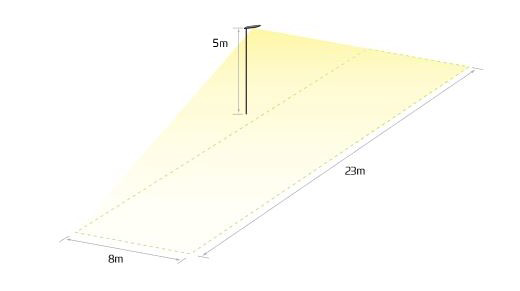

Lighting Distribution Dimensions

Reviews

There are no reviews yet.

Be the first to review “30W ECO BLADE AREA LIGHT”

30W Eco Blade Data Sheet

Download

30W Eco Blade Instructions

Download
MODE OF OPERATIONRemote controlled ON/OFF, timer and P.I.R sensor settings. The light will operate at a selected output until the PIR is activated where it will operate at 100%. WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
