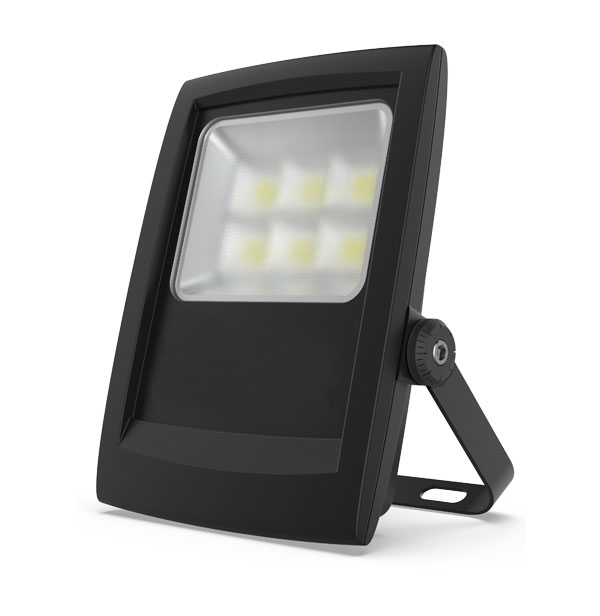

VENUS SOLAR FLOOD LIGHT – MEDIUM OUTPUT
- Commercial grade solar security lighting
- Adjustable lamp and panel brackets included
- High quality inbuilt LifeP04 battery
- Radar sensor lighting when movement is detected
- >3 nights Autonomy – setting dependent
- Wall or post mountable
- Custom bracketing or powdercoated poles available on request
- Premium Epistar LED’s
- 5mtr panel to light head cable, extensions available
- IP65 waterproof rating
- 2 year warranty for faulty workmanship or component failure not influenced by external means
The medium output Venus floodlight is a purpose-built, solar security/flood light combination, designed for areas where medium lighting output is required. The remote allows for programming of the fitting including the LED output, time and mode of operation and selection of a sensitive 360° radar sensor system where the light will operate at a set output until the movement activated radar is triggered, instantly switching to full output. The 880 lumens produced by the premium Epistar LEDs set at a 120° angle ensure large areas are illuminated effectively. A quality 12W solar panel and sturdy mounting hardware are included. The 5000mm of cabling enable the panel to be remote located to achieve maximum photovoltaic conversion or the light head to be installed under cover. Custom programming allows the Venus to operate when the solar panel is exposed to sunlight allowing the fitting to me installed in a workshop, horse stable or shed.
Technical Data
SKU | SOLL/4.8 |
---|---|
Solar Panel Wattage | 12W |
LED Output | 4.8w@183.3 lumens/watt |
Lumen Output | 880 lm |
Battery Type | LiFePO4 |
Battery Specifications | 6AH 6.4V (38.4Wh) |
Autonomy | > 3 nights, setting dependent |
Correlated Colour Temp (CCT) | 6000K |
Fixture Size | 240 (I) x 168 (w) x 56 (h) mm |
Light Source | Epistar SMD2835 |
Recharge | >4 hours, setting dependent |
Mounting Height | 2-4 Mtrs |
Mounting | Wall or column |
Finish | Powdercoated cast aluminum |
Warranty Period | 2 years |
Lighting Distribution Dimensions
You must be logged in to post a review.
OPERATIONAL MODES
Auto ON at dusk, OFF at dawn 4 levels of brightness. Operate at 100% output when sensor is triggered. Operate at 30% to 100% output when sensor is triggered. Operate at 100% output for set time periods.APPLICATIONS
Security/Perimeter Lighting | Home | Office | FactoryWHAT IS A LUMEN?
In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES
- A typical 4 x D cell battery maglite will emit approx. 70 lumens
- The average path light using 2-3 LEDs emits 15-18 lumens
- A 25W incandescent globe emits approximately 160 lumens
