SOLAR PEDESTRIAN WARNING SYSTEM

  • Ultra-bright, weatherproof, fully backlit and edge lit, class one reflective
  • Sign faces and solar road studs become animated on activation
  • Dramatically increase the visibility and improve the safety of pedestrians
  • All component modules are solar powered and wireless
  • >96 hours autonomy
  • IP67 Waterproof design
  • IK10 Impact resistant sign face
  • Lockable battery and component enclosure
  • Simple plug and play installation
  • Portable or fixed versions available
  • 2 year warranty for faulty workmanship or component failure not influenced by external means.

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SOLAR PEDESTRIAN WARNING SYSTEM

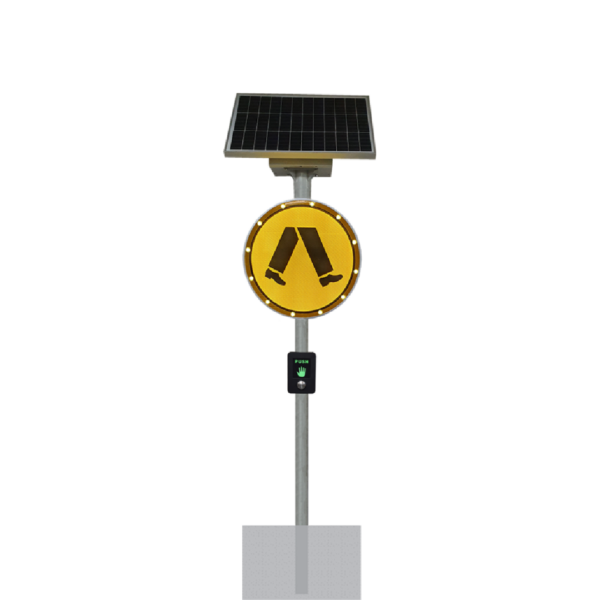

The Solar Pedestrian Warning System is designed to improve pedestrian safety in high risk locations by dramatically increasing the visibility of the pedestrian crossing day and night. When the system is in standby mode (no pedestrians crossing) the backlit sign face illuminates intermittently increasing awareness to approaching drivers.Button activation on either side of the crossing triggers the synchronised animation of the pedestrian signs edge lit LED’s, the backlit sign face and flush mounted solar road markers. The entire system is powered by a high quality solar powerbank mounted atop the same post as the pedestrian sign and activation button. The pedestrian signs are manufactured to Australian standard AS1906.1, are class 1 reflective and can be produced in any size. This product is designed for distribution centres, carparks, truck and bus depots or anywhere where pedestrian safety is a concern.

Technical Data

SKU
SOLPEDX
Sign Face Display
3M Class One Reflective
Display Colour
Yellow/Black
Solar Panel Wattage
80W
LED Output
Variable
Lumen Output
Automatic variable
Battery Type
Lithium – Ion
Battery Specifications
48Ah 12v (576Wh)
Autonomy
> 5 Nights, setting dependent
Light Source
SMD LED
Recharge
6 hours
Mounting Height
Variable
Mounting
Galvanised steel column
Finish
Powdercoated aluminum
Warranty Period
2 years

Video



Printable Data Sheets

Solar Pedestrian Warning System SPECIFICATION

Additional Information

OPERATIONAL MODES24 hour continuous or dusk to dawn operation. Animation of sign face and road studs on activation. Custom programming available. Alternate signs available.WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work. FAMILIAR EXAMPLES

  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
