SOLAR LIGHTING DESIGNS

Design – Manufacture – Supply – Install

SOLAR FLUSH MOUNT WALKWAY LIGHTS

  • Commercial grade solar walkway/cycleway lights
  • Super capacitor technology
  • Flush mounted, trip hazard free non slip surface
  • 30 ton load rating
  • > 8 years life
  • Cast aluminium & polycarbonate construction
  • IP68 submersible waterproof rating
  • Static or flashing
  • Various colour options available
  • Automatic dusk to dawn lighting
  • 3 year warranty for faulty workmanship or component failure not influenced by external means



Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SOLAR FLUSH MOUNT WALKWAY LIGHTS

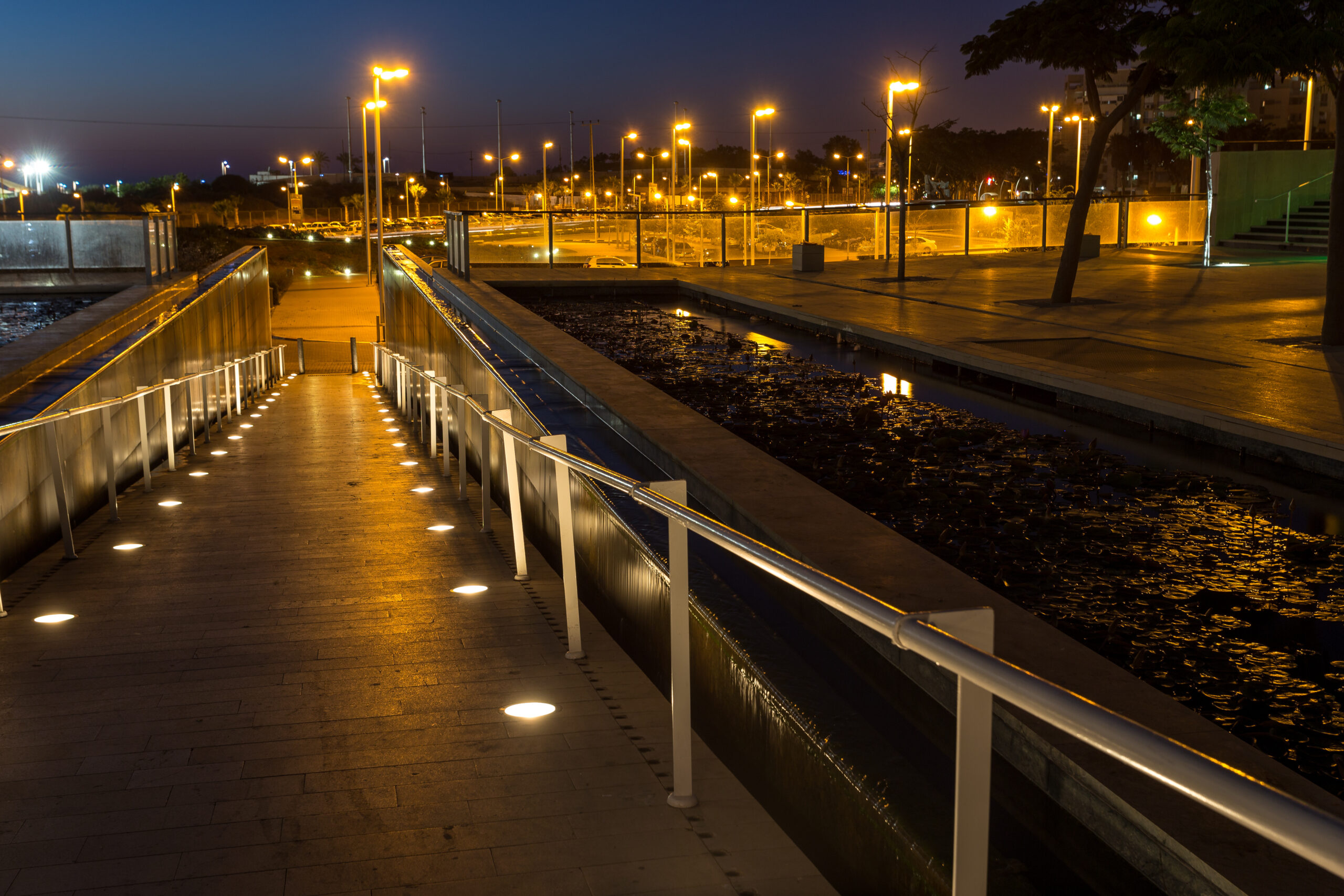

The solar flush mounted walkway and cycleway light offers trip hazard free, all-night dusk to dawn lighting that will clearly define a walkway or cycleway. This premium product is at the forefront of solar technology offering a super capacitor as power storage in place of a battery allowing an extended life to greater than 8 years. Various colours and static or flashing modes are options. The light is designed in three parts, the cast aluminium base that is set into the substrate, the removable epoxy filled internal componentry and the nonslip polycarbonate lens. The light is IP68 (submersible) waterproof rated and has a weight rating exceeding 30 tons making it suitable for roadway installations.

Technical Data

SKU
SOFMSC01
SKU
SOFMSC01
Solar Panel Wattage
0.4 4W
LED OUTPUT
0.02W
Lumen Output
50 lm
Power Storage
Super capacitor
Capacitor Specifications
120F 2.3V
AUTONOMY
> 72 hours
Correlated Colour Temp (CCT)
6000K
Fixture Size
136mm Dia x 52mm
Light Source
Epistar F10
Recharge
3 hours
Mounting Height
Flush with substrate
Mounting
Inground
Finish
Antislip polycarbonate
Warranty Period
2 years

Video



Additional Information

OPERATIONAL MODESAutomatic dusk to dawn operation. Static or flashing. Various colour options available.CCTV records to internal SD card 24/7.WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES

  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
