SLD Modular Pro 60W

  • Premium-grade modular solar lighting
  • Scalable lighting output
  • Constant output or PIR activated
  • Ideal for illuminating paths and cycleways
  • Preinstalled IOT capability
  • Programmable smart lighting
  • Automatic dusk to dawn lighting
  • Custom brackets or powdercoated columns manufactured on requests
  • Up to 190 lumen/watt LED output
  • Aluminium frame and components in a powder coated black finish (RAL9005)
  • Mounting height of 5 – 8 metres
  • 25 year warranty on solar panel and light fitting, 10 year warranty on batteries and electronics. Warranty covers faulty workmanship or component failure not influenced by external means*

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SLD Modular Pro 60W

The SLD Modular-Pro Solar lighting range offers scalable lighting output from a modular solar lighting system. All Modular Pro Series systems combine premium components, quality construction and are built specifically to suit the application. The modern design of the SLD Modular-Pro Solar Light incorporates the solar panel, battery, and LED array into one post top mounted, streamlined, and efficient Solar fitting. Outputs from 10w to 60w in either single or twin light heads are available. Constant output dusk to dawn, motion detected PIR sensor activated, or custom programmed lighting are available options. The use of premium Lifepo4 battery and intelligent lighting control combined with 5050 SMD LED’s producing up to 190+ lumens per watt provide an exceptional light output from these solar luminaires.

Technical Data

SKU
SLDPRO60
SOLAR PANEL WATTAGE
36V + 110W to 220W
LED OUTPUT
60w (single or twin light head)
LUMEN OUTPUT
Up to 10200lm (per light head)
BATTERY TYPE
LiFePO4
BATTERY SPECS
up to 4 25.6V 18AH (460.8 Wh)
AUTONOMY
>15 nights setting dependent
Correlated Colour Temp (CCT)
5000K
Light Source
5050 SMD LED
Recharge
Setting dependentt
Mounting Height
5 – 8 metres
Mounting
60mm Spigot
Finish
Powdercoated aluminium (RAL9005)
Warranty Period
25/10 years*

Lighting Distributions

Video

Printable Data sheets

60w-Modular-Pro-Data-Sheet-web_

Additional Information

CUSTOMISED OPERATIONAL MODES

Default program – The unit will operate at 30% output adjusting to 100% output when the PIR is activated, returning to 30% output when no movement is detected.

Custom Programming – Custom lighting programs to suit specific lighting requirements.

br style=”font-weight: 500; color: #000000;” />
PREMIUM 24V SYSTEMThe primary benefits of a 36V solar panel and 24V battery system is their increased efficiency compared to 12V systems. Higher voltage systems allow for lower current, which reduces power losses in the wiring and makes the overall system more efficient.

WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES

  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens

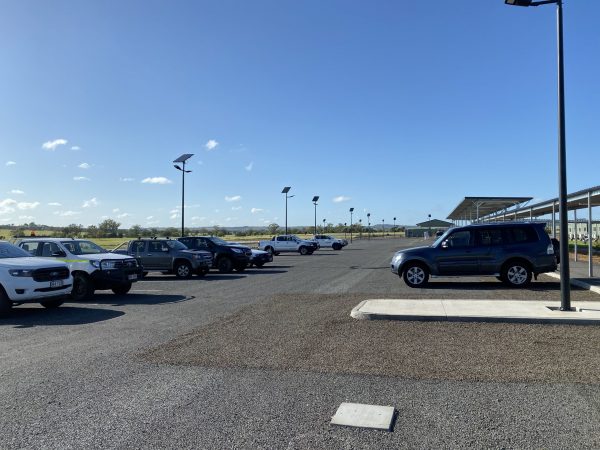

Projects using this product
