SOLAR LIGHTING DESIGNS

Design – Manufacture – Supply – Install

Halo Vandal Resistant Solar Bollard

  • Superior theft and vandal resistant features
  • IK10 impact resistant
  • IP66 dust ingress and waterproof rated
  • Exceptional light output – Dusk until dawn
  • Premium LiFeP04 battery
  • Programmable microwave motion sensor
  • Anodised aluminum stem and reinforced base plate
  • Optional 316/304 grade stainless steel stem
  • AS/NZS 1158.3.1 compliant
  • Unaffected by mains power outages
  • Optional stainless steel tamper proof fixings
  • Bolt down or inground stems
  • 5 year warranty for faulty workmanship or component failure not influenced by external means

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

Halo Vandal Resistant Solar Bollard

The Halo Vandal Resistant Solar Bollard offers exceptional dusk to dawn lighting for commercial locations or anywhere vandalism may be a concern. This premium product has a lamp housing manufactured from moulded UV stabilised high impact polycarbonate, uses security fixings and a stem of powder coated aluminium or 304/316 grade stainless steel. This combined with the IK10 impact certification and IP66 dust ingress and waterproof rated safeguards the product from the environment and deliberate acts of vandalism or theft. The invisible 360° radar sensor ensures maximum output is available when required while still providing ambient light and retaining battery charge when full output is not necessary.

Technical Data

SKU
SOLBV004
Solar Panel Wattage
6.3W
Maximum LED Output
Customisable*
Maximum Lumen Output
Customisable*
BATTERY TYPE
LiFePO4
Nominal Battery Voltage
3.2V
Charging Battery Voltage
3.65V
AUTONOMY
> 7 nights (Setting dependent)
Correlated Colour Temp (CCT)
3000 – (std) 5000k
Fixture Size
280mm dia x 160mm
Light Source
Premium directional LED modules
Recharge
5 hours (Setting dependent)
Mounting Height
950mm (Custom Available)
Mounting
Post, wall, or column
Finish
UV Stabilised High Impact Polycarbonate)
Warranty Period
5 years
Product
Manufactured in China, imported into Australia and distributed by Solar Lighting Designs

Video



Printable Data Sheets

Halo Vandal Resistant Solar Bollard Data Sheet

Recommended cleaning and maintenance procedure

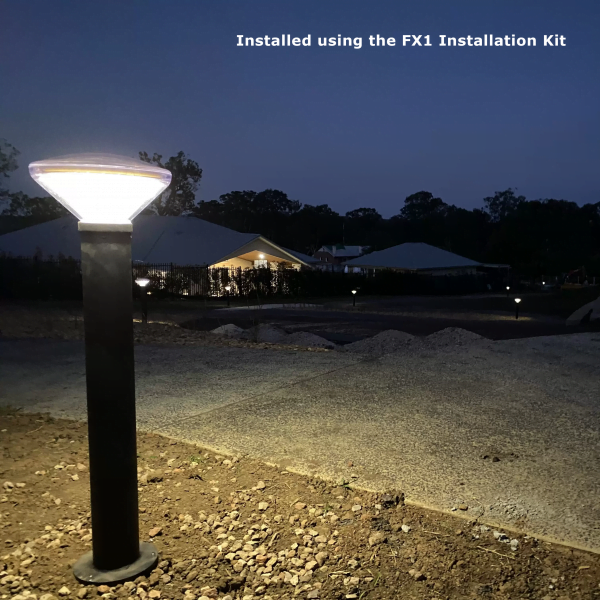

FX1 Installation Kit

FX2 Installation Kit

FX3 Installation Kit

FX4 Installation Kit

FX5 Installation Kit

FX6 Installation Kit

FX-Ragbolt Cage Instructions



Additional Information

OPERATIONAL MODESAutomatic dusk to dawn lighting. The 360° sensor detects movement, increasing the LED output to 100% as you approach, remaining at 100% while movement is detected. The lamp will dim to 30% output (variable) when movement is no longer detected. Fully programmable LED output.WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES

  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
